Qsan XF5226S 26 Bay Storage Array
Qsan XF5226S 26 Bay Storage Array Chennai, Hyderabad
- Brand: QSAN
- Part No: XF5226S
- Model No: Qsan XF5226S All Flash Storage
- Architecture: Single-upgradable controller
- Processor: Intel Xeon 12-core processor
- Memory: 16 GB DDR4 RDIMM (per controller)
- Total Memory Slots: 8 (per controller)
- Total Expandable: Upto 1,024 GB (per controller)
- Drive Bays: 2.5" Slot x 26
- Maximum Drive Bays with Expansion Unit: 546
- Drive Type: 2.5" single-port U.2 NVMe SSD, 2.5" SAS/SED SSD, 3.5" SAS HDD
- Drive Interface: U.2 NVMe (PCIe Gen 4), SAS 12 Gb/s
- Maximum Internal Capacity: 798 TB
- Maximum Capacity with Expansion: 16,773 TB
- 12 Gb/s SAS Wide Port: 2 (onboard)
- USB Port: 1 (front) / 1 (rear)
- RAID: 0/1/3/5/6/10/50/60/5EE/6EE/50EE/60EE
- Data Protection: Snapshot, Asynchronous, Synchronous (option)
- Security: HTTPS, SSH, iSCSI CHAP, ISE & SED
- Protocols: iSCSI, FCP, NVMe-oF
- Management: Web UI, RESTful API, S.E.S., LCM
- Power Supply: 650W x 2 (80 Plus Platinum)
- Dimensions: 88 x 438 x 573 mm
- Weight: 16.5 kg
- Warranty: 3 years Warranty
Related Products
QSAN XCubeNXT XN5124D 24 Bay Network Attached Storage
QSAN XCubeSAN XS3324D 4U Rack Hybrid Flash Storage
Qsan XF5226S 26 Bay Storage Array
Qsan XF4226D 26 Bay High Density Storage

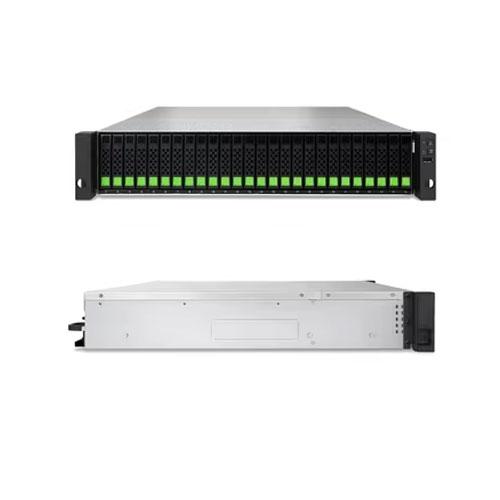

Qsan XF4226S 26 Bay All Flash Array
Qsan XF3212D 12 Bay Storage Enclosure

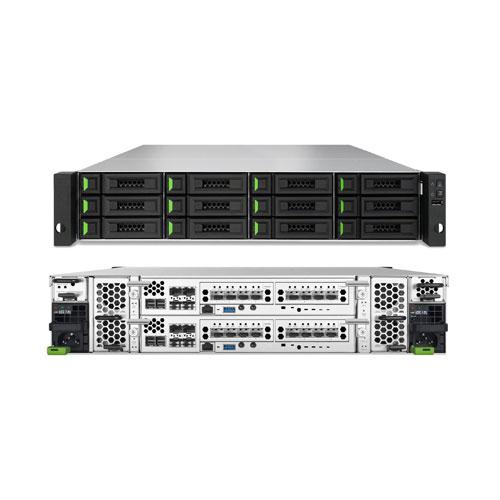

Qsan XF3212S 12 Bay Entry Level Storage
