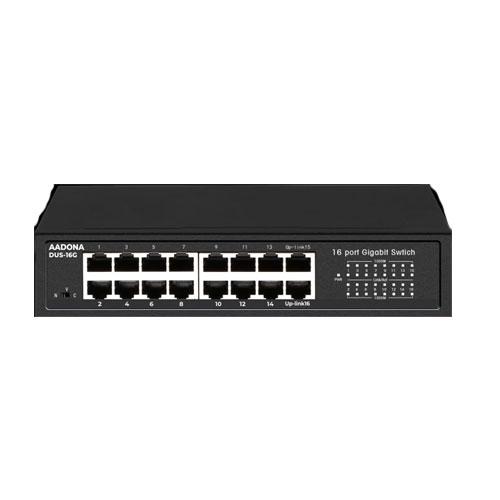

DIANA DUS 16G Non POE Ethernet Switch
DIANA DUS 16G Non POE Ethernet Switch Chennai, Hyderabad
- Brand: Aadona
- Product: DIANA DUS-16G 16 Port Unmanaged Non POE Switch
- Model Name: DUS-16G
- Port: 16 Port 10/100/1000M Unmanaged Switch
- Product Family: Diana:
- 10M/100M/1000M RJ45 Port: 16
- 10M/100M/1000 Uplink RJ45 Port: NA
- 10M/100M/1000M SFP Uplink Port: NA
- Total Ports: 16
- Switching Bandwidth: 56 Gbps
- Packet Forwarding: 14.44 Mpps
- Exchange Mechanism: Store & Forward
- System Buffer: 2.5M
- MAC Address: 4K
- Jumbo Frames: 9K
- DIP Switch: N:(standard normal); V:(port isolation); C:(Flow Control mode)
- Port Based Isolation: Yes:
- Operating Temperature: -10-55?
- Operating Humidity: 10%?90% RH Non-condensing
- Storage Temperature: -40??75?
- Storage Humidity: 5%?90% RH Non-condensing
- FAN Less: Yes:
- AC Input: Internal Power Supply AC input 100240V 5060Hz 1A
- Power Consumption: ?15W
- IEEE 802.3X: Yes
- IEEE 802.3i 10BASE-TX: Yes
- IEEE 802.3u 100BASE-TX: Yes
- IEEE 802.3x Flow control: Yes:
- Normal Mode: Up to 100 meters
- Ethernet 10Mbps half-duplex: Yes
- Fast Ethernet 100Mbps half-duplex: Yes
- Gigabit Ethernet 1000Mbps half-duplex: Yes
- Gigabit Ethernet 2000Mbps full-duplex: Yes:
- 10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(?250m)
- 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(?150m)
- 1000Base-TX: Pair 2 Category 6 and above UTP/STP(?150m)
- Lightning Protection: 3KV 8/20us; IP30
- Product Dimensions (H) x (W) x (D) mm: 210mm105mm45mm
- Weight: 0.6kg
- Warranty: 2 Year + 1 Year Extended Warranty (Max 3 Year)
Related Products

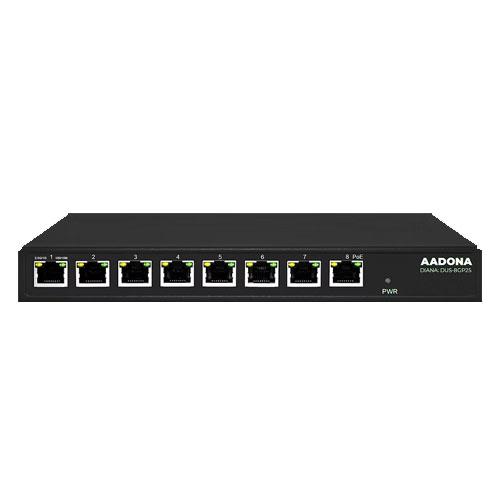

Aadona DUS 8GP25 POE Access Switch

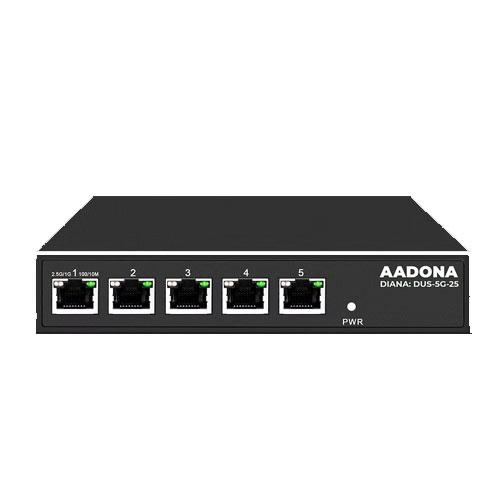

Aadona DUS 5G25 Gigabit Non POE Switch
Aadona DUS 5GP 25 Non POE Ethernet Switch

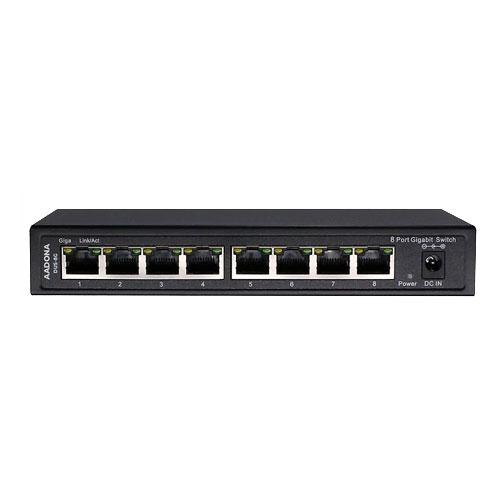

DIANA DUS 8G Non POE Industrial Switch

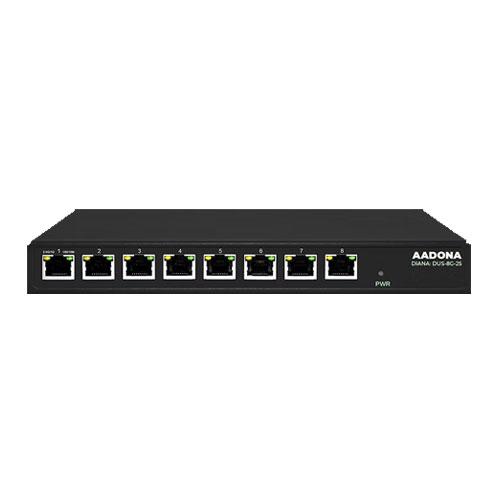

Aadona DUS 8G 25 Non POE Network Switch

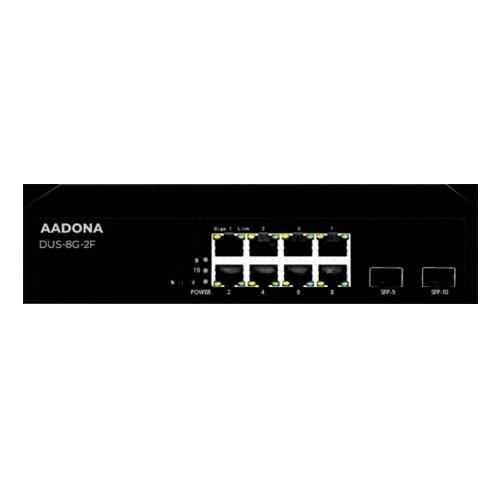

DIANA DUS 8G 2F Non POE Access Switch
