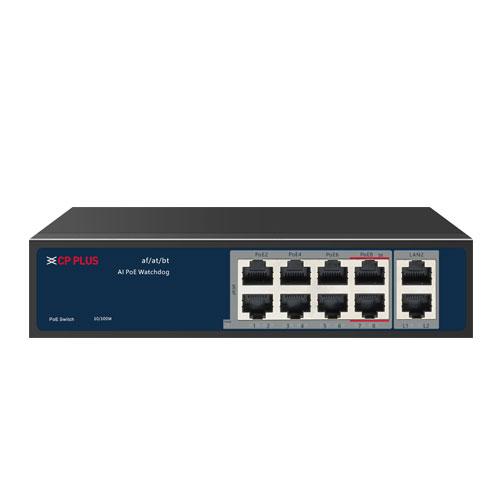

CP Plus CP ANW HPU8H2 N12 8 Port Network Switch
CP Plus CP ANW HPU8H2 N12 8 Port Network Switch Chennai, Hyderabad
- Brand: CP Plus
- Model No: CP Plus CP-ANW-HPU8H2-N12 8 Port POE Plus 2 Uplink Port PoE Switch
- Network Port PoE (1-6): 10/100Mbps PoE ports (RJ45), PoE (7~8): 10/100Mbps PoE ports (RJ45),Support bt 60W High Power, LAN: 10/100Mbps uplink ports (RJ45)
- Network Standard: IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet
- Transmission Rate: 200Mbps Full Duplex; 10 or 100Mbps Half Duplex
- Transmission Distance: 1-2 ports 250m 10Mbps / 3~8 ports 130m 100Mbps
- MAC Address List: 2K
- Bandwidth: 2.0 Gbps
- Network Latency (10 to 100Mbps): ?16?s (use the 64byte package size)
- Frame Filter & Transmission Rate: 14800pps the most for 10Mbps port, 148800pps the most for 100Mbps port
- Power Budget: 120W
- Power Input: AC 90~240V, Total: ?120W
- Power Output PoE 1-6 Port: 1/2(+52V), 3/6 (GND)?30W, PoE 7~8 Port: 1245(+53V), 3678 (GND) compatible 1/2 (+52V), 3/6 (GND)?60W
- Watchdog Port 1-8
- Lightning Protection 6KV, Per: IEC61000-4-5
- ESD Protection 8KV, Per: IEC61000-4-2
- Operating Temperature: -30°C ~60°C
- Operating Humidity: 10%~90% (Non-condensing)
- Storage Temperature: -40°C ~70°C
- Storage Humidity: 5%~90% (Non-condensing)
- Package Content: AC Power Cable, User Manual
- Dimension: 187mm(L) x 139mm(W) x 43mm(H)
- Weight: 1 Kg
Related Products

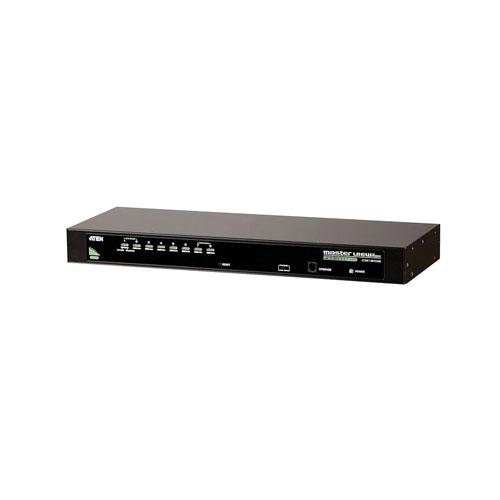

Aten CS1308 8 Port USB VGA KVM Switch
