Brand: Barco

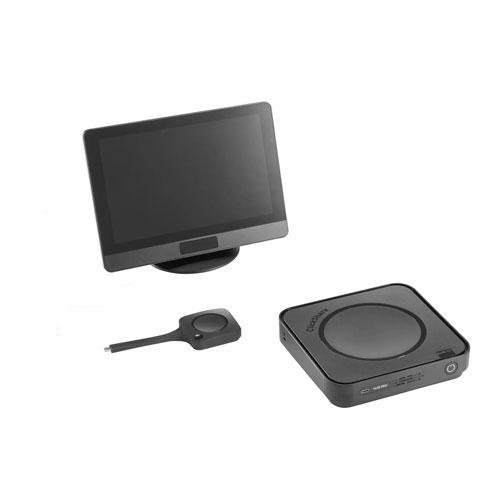

Model No: Barco ClickShare Hub Core Video Conferencing
Operating system: Windows 10 or higher macOS 14 (Sonoma) and 15 (Sequoia)
System requirements: Minimum: Intel Core i3 or AMD Ryzen 5, 8GB RAM, Windows 10 20HS; Intel Core i3 or Apple Silicon M1, 8GB RAM, macOS 11 Big Sur, Recommended: Intel Core i5/Ultra 5 or AMD Ryzen 7, 8GB RAM, Windows 11 latest build; Apple Silicon M3, 8GB RAM, macOS latest build
Video outputs: HDMI: UW5K WUHD (5120*2160) @30Hz HDMI 2.0, eDP (Control Panel): HD (1280*800) @60Hz DP 1.4
Video inputs: 4K UHD (3840*2160) @30Hz HDMI 2.0
Audio output: USB-A 2.0/3.0 USB-C 2.0/3.0 HDMI 2.0
ClickShare Buttons: 1 * ClickShare Button 5th Generation
ClickShare App: Desktop
Maximum sources simultaneously on screen: 1
Noise Level: Maximum 25 dBA @ <30°C Maximum 30 dBA @ >30°C
Wireless transmission protocol: IEEE 802.11 a/b/g/n/ac/ax/be and IEEE 802.15.1 BT 5.3
Reach: Max. 30m (100ft) between ClickShare Button and ClickShare Base Unit
Frequency band: 2.4GHZ, 5GHz and 6GHz DBS/HBS (DFS channels supported in select number of countries)
Connections: Back: 1x Ethernet LAN 1Gbit 1x USB-C Power delivery 3.1 EPR (for power adapter) 1x HDMI 2.0 output 1x USB-A 2.0/3.0 1x USB-C 2.0/3.0 1x USB-C 2.0/3.0 Device + USB-C DisplayPort™? output 1x USB-C 2.0 + USB-C DisplayPort™? output Front: 1x USB-C 2.0/3.0
Temperature range: Operating: 0°C + 40°C (+32°F to +104°F) Max 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to + 140°F)
Humidity: Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system: Kensington lock
Certifications: FCC/CE
Network connection: LAN
Management and reporting: Yes, XMS Cloud
Power consumption: Operational: 140W (max) Standby: <7W (ECO mode), <0.5W (Deep Sleep mode)
Power supply: External USB-C charger 100W (PD3.0 SPR), 180W (PD3.1 EPR)
Dimensions (HxWxD): 37 * 180 * 180 (mm)
Weight: 720 gram
Warranty: 3 years standard
