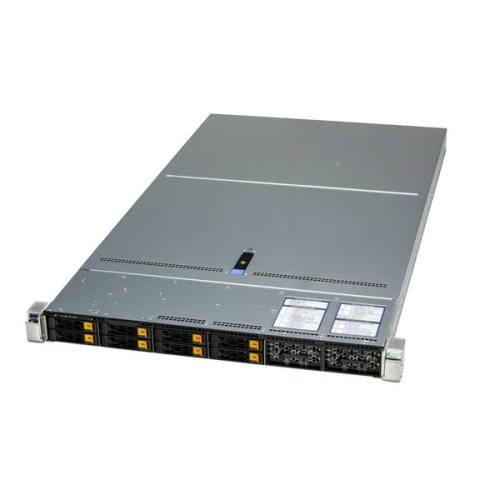

Supermicro Hyper SYS 122HA TN LCC Dual Socket Rack Server
Supermicro Hyper SYS 122HA TN LCC Dual Socket Rack Server Chennai, Hyderabad
- Brand: Supermicro
- Model No: Hyper SYS 122HA TN LCC SuperServer
- Form Factor: 1U Rackmount Enclosure: 437 x 43 x 778.7mm (17.2" x 1.7" x 30.66") Package: 672 x 224 x 1100mm (26.46" x 8.82" x 43.31")
- Processor: Dual Socket BR (LGA-7529) Intel Xeon 6900 series processors with P-cores Up to 128C/256T; Up to 504MB Cache per CPU
- System Memory: Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
- Drive Bays Configuration: Default: Total 12 bays 12 front hot-swap 2.5" NVMe drive bays M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
- Expansion Slots: Default 2 PCIe 5.0 x16 FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- On-Board Devices: NVMe: NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required) Chipset: System on Chip Network Connectivity: Via AIOM
- Input / Output: LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 3.0 ports(rear) 1 USB 3.0 port(front) Video: 1 VGA port
- System Cooling: Fans: Up to 8 counter-rotating 40x40x56mm Fan(s) Liquid Cooling: Direct to Chip (D2C) Cold Plate
- Power Supply: 2x 1600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
- Color: Silver
- Net Weight: 19.2 lbs (8.7 kg)
