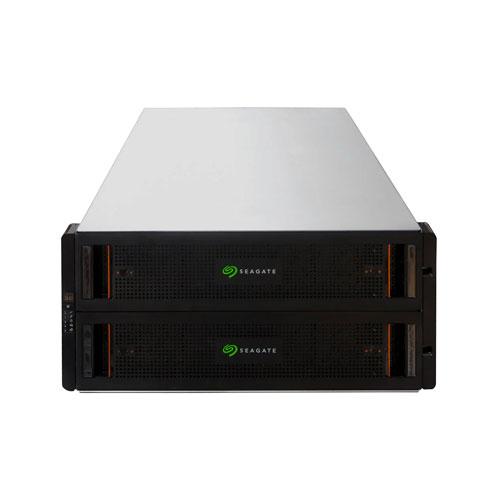

Seagate Exos AP 5U84 5U Storage Enclosure
Seagate Exos AP 5U84 5U Storage Enclosure Chennai, Hyderabad
- Brand: Seagate
- Product: Seagate Exos AP 5U84 Storage
- Form factor: 5U
- Controllers: One or two AP-BV-1 Controllers, redundancy optional
- CPU: AMD SP3 7292P EPYC CPU (12,16 Core)
- Memory: 4 x DDR4 - 3,200 MHz DIMM slots - 32,64,128 GB DIMM support
- Internal Boot Drive: Single or Dual M.2 NVMe SSD for Redundant Boot/Logs
- Onboard I/O: On-board NVidia CX4 Dual Port 10/25GbE I/O, / 2x 1GbE onboard connections (Management/Data)
- PCIe Expansion: One low-profile, half-length PCI Express Gen 4 x16 Host Interface Slot One OCP v2.0 Gen 4x8 host interface slot
- Storage Infrastructure: Gen 4 x8 PCIe Lanes to 12G Broadcom SAS Controller, Dual 12G x4 Mini-SAS HD External Expansion Ports
- Inter-Controller Link: PCI Express Gen 3 x16 NTB Inter-controller Interface
- Redundant Path: Yes (SAS only)
- Host/Expansion I/O Ports: Two ×4 mini-SAS HD Expansion I/O connectors
- Management/Status Reporting: Redfish API + IPMI & SES
- Device Support: 12 Gb/s SAS drives
- Max Drives Per Enclsoure: 84 × 3.5-in LFF drive slots
- Hot-Swappable Components: HDDs and SSDs (in chassis data slots), power supply units (PSU), cooling modules, side-plane expanders, and controllers
- Input Power Requirements: 200VAC-240VAC, 50Hz/60Hz
- Max Power Output per PSU: 2200W
- Power Supply: Power Efficiency 230VAC50/Hz, Power Factor Conditions (PFC)
- Dimension (Height x Width x Depth): 220 mm x 483 mm x 933 mm
- Weight: 135 Kg
Related Products
Seagate Exos Corvault 4U106 2000TB Expansion Storage
Seagate Exos Corvault 4U106 2100TB 4U Rackmount Storage
Seagate Exos Corvault 5U84 5U Rackmount Storage
Seagate Exos X 2U12 12 Bay Storage
Seagate Exos X 2U24 24 Bay Storage
Seagate Exos X 5U84 84 Bay Storage
Seagate Exos E 2U12 12 Bay Storage Enclosure
Seagate Exos E 2U24 24 Bay SAS Storage

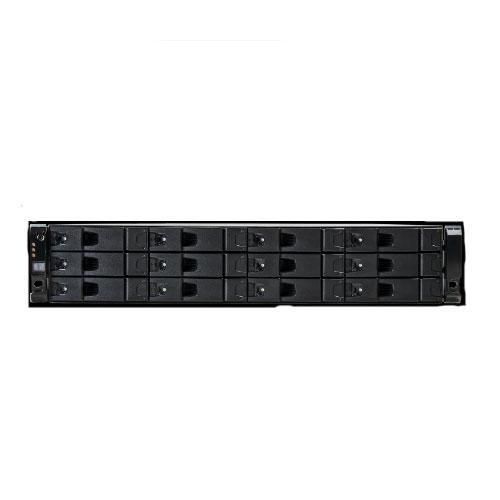

Seagate Exos AP 2U12 Rack Storage

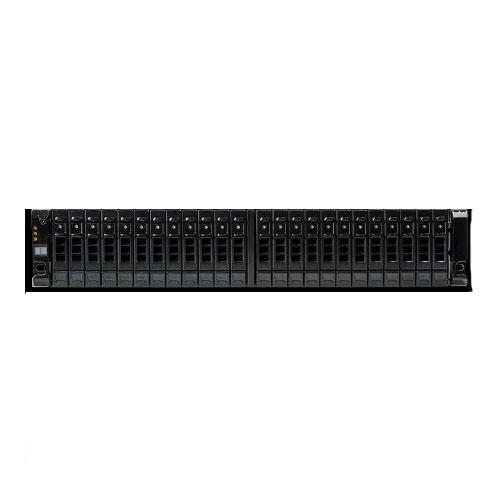

Seagate Exos AP 2U24 2U Storage
