Brand: Posiflex

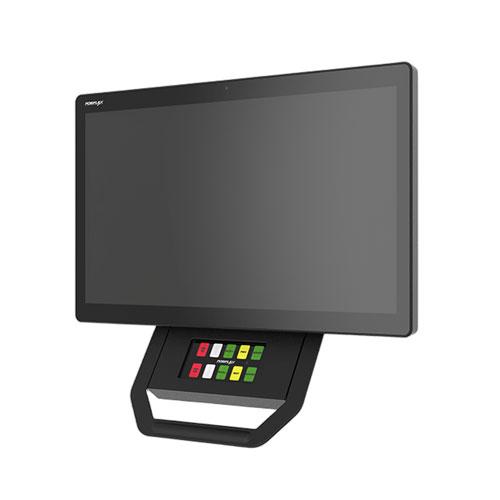

Model No: Posiflex KDS 4321 Pos Terminal
Processor: Intel Raptor Lake U Core i3, Intel Raptor Lake U Core i5, Intel Raptor Lake U Core i7
System Memory: DDR5 SO-DIMM x 2, max. 64 GB
Storage Device: M.2 2280 (support both SATA and PCIe signal) x 2
RAID Function: Yes (Raid 0/ 1)
Intel vPro Support: Yes, Depends on CPU
TPM: TPM 2.0
OS Support: Windows 10 IoT LTSC / Windows 11 IoT LTSC
LCD: 21.5" LCD
Resolution: 1920 x 1080, FHD
Touch: PCAP supporting multi-touch, W/AR + AF Coating
Serial Port: DB9 x 1 + RJ50 x 1, 5V/12V support on all COM ports
Standard USB Port: USB 3.0 x 2 + USB2.0 x 2
LAN Port: 2.5Gbe x 2
Audio: Internal speaker x 2
Expansion Slot: M.2 2230 (reserved for WiFi/BT Module) x 1
USB-C Port: Adapter needs upgrade to 24V/120W accordingly
Operating Condition: 0°C - 45°C, 20%RH - 90%RH
Storage Condition: -20°C - 70°C, 10%RH - 90%RH
IP Rating: IP54
WLAN/BT: Wi-Fi IEEE 802.11a/b/g/n/ax (WiFi6) / BT 5.2
Power Adaptor: 24V/100W
Base: Support Gen10 Base
Bump Bar Keyboard: BB3000W for KDS
Scanner Module: Support 2D BCR Kit
VESA Mount: 100 x 100
Dimension (W x D x H in mm): 516 x 51 x 324
Weight (N. W. in kg): 6
