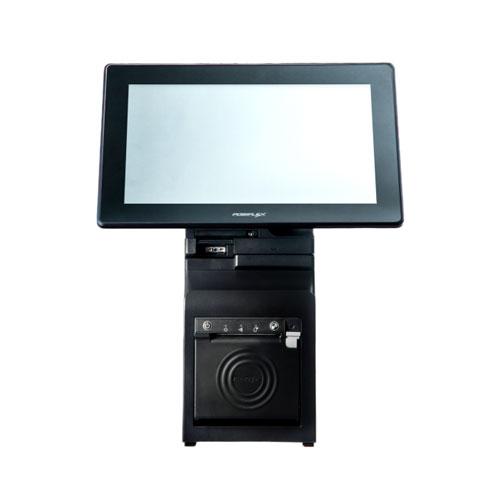

Posiflex HS 6714W AIO Pos Terminal
Posiflex HS 6714W AIO Pos Terminal Chennai, Hyderabad
- Brand: Posiflex
- Model No: Posiflex HS 6714W Pos Terminal
- Processor: Intel Whisky Lake Core i3-8145UE, up to 3.90 GHz, 4.0M Cache; Intel Whisky Lake Core i5-8365UE, up to 4.10 GHz, 6.0M Cache
- System Memory: DDR4 SO-DIMM x 2, max. 64GB
- Storage Device: M.2 connector x 2 (support SATA signal only)
- TPM: TPM 2.0
- Power Supply: 24V/100W
- OS Support: Windows 10 IoT LTSC, Windows 11 IoT LTSC
- LCD: 14" TFT LCD
- Resolution: 1366 x 768
- Touch: True-flat PCAP touch with multi-touch support (IP65 on front panel)
- Serial Port: DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
- Parallel Port: Yes
- Standard USB Port: USB 3.0 x 4
- OTG USB: N/A
- LAN Port: 10/100/1000 Mb x 1
- Display Port: VGA x 1 (12V support for Posiflex monitors )
- CR Port: RJ11 x 1, control 2 CR via optional Y-cable (printer driven), supporting 24V cash drawer
- PS2 Port: Yes
- Audio: Line-out / Mic-in combo jack x 1
- Expansion Slot: M.2 slot x 1
- Operating Condition: 0°C - 40°C, 20%RH - 90%RH
- Storage Condition: -20°C - 70°C, 10%RH - 90%RH
- WiFi module: M.2 WiFi/BT module
- Printer Module: PP-7900, 3" speedy thermal printer, 250 mm/sec (max.)
- MSR Module: 3 tracks ISO or JISII (HID/VCOM selection)
- Scanner Module: 2D barcode scanner
- RFID Reader Module: Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)
- iButton Module: Yes (cannot coexist with Fingerprint Sensor)
- 4G/LTE Communication Module: Single SIM slot, selected band support
- Fingerprint Sensor Module: Optical type
- POS Monitor: Non-touch TFT LCD: 7"/9.7"/12.1"; PCAP touch TFT LCD: 9.7"
- Line Display: 2 x 20 rear-mount VFD customer line display; 2 x 20 rear-mount LCD customer line display
- Dimension (W x D x H in mm): 371 x 210 x 476
- Weight (N. W. in kg): 5.8
