Brand: NetApp

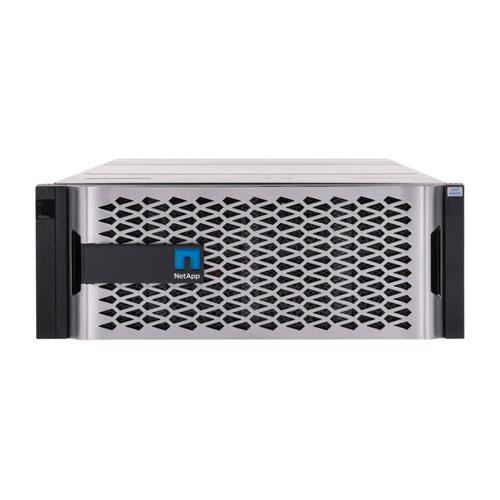

Model No: NetApp ASA A400 All Flash SAN Storage
Maximum scale-out: 2–12 nodes(6 HA pairs)
Maximum SSDs(NVMe): 576
Raw capacity (per HA pair): Up to 14.7PB
Maximum effective capacity: 351PB
Controller form factor: 4U
Power consumption(median): 890W (with DS224C), 1240W (with NS224)
PCIe expansion slots: 10
FC target ports(32Gb autoranging): 24
FC target ports(16Gb autoranging): 32 (with FC mezzanine card)
FCoE target ports, UTA2: n/a
100GbE ports(40GbE autoranging): 16
25GbE ports(10GbE autoranging): 16
10GbE ports: 32
10GBASE-T(1GbE autoranging): 16
12Gb/6Gb SAS ports: 32
Storage networking supported: NVMe/TCP, NVMe/FC, FC, iSCSI
Shelves and media: NS224 (2U, 24 drives, SFF NVMe); DS224C (2U, 24 drives, 2.5” SFF); DS2246 (2U, 24 drives, 2.5”, SFF)
Host/client OS supported: Windows Server, Linux, Oracle Solaris, AIX, HP-UX, VMware
