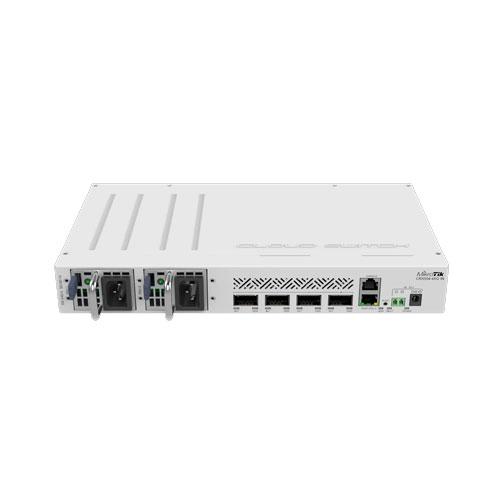

MikroTik CRS504 4XQ IN Network Switch
MikroTik CRS504 4XQ IN Network Switch Chennai, Hyderabad
- Brand: Mikrotik
- Product: CRS504-4XQ-IN Network Switch
- Product code: CRS504-4XQ-IN
- Architecture: MIPSBE
- CPU: QCA9531
- CPU core count: 1
- CPU nominal frequency: 650 MHz
- Switch chip model: 98DX4310
- Dimensions: 320 x 185 x 44 mm
- RouterOS license: 5
- Operating System: RouterOS v7
- Size of RAM: 64 MB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient temperature: -40°C to 70°C
- Number of AC inputs: 2
- AC input range: 100-240
- Number of DC inputs: 3 (DC jack, PoE-IN, 2-pin terminal)
- DC jack input Voltage: 36-57 V
- Number of PSU slots: 2
- 2-pin terminal input Voltage: 36-57 V
- Frequency (Hz): 47-63
- Max power consumption: 41 W
- Max power consumption without attachments: 25 W
- PoE in: 802.3 bt
- Cooling type: 2 fans
- PoE in input Voltage: 43-57 V
- 10/100 Ethernet ports: 1
- Number of 100G QSFP28 ports: 4
- Serial console port: RJ45
