Brand: Lenovo

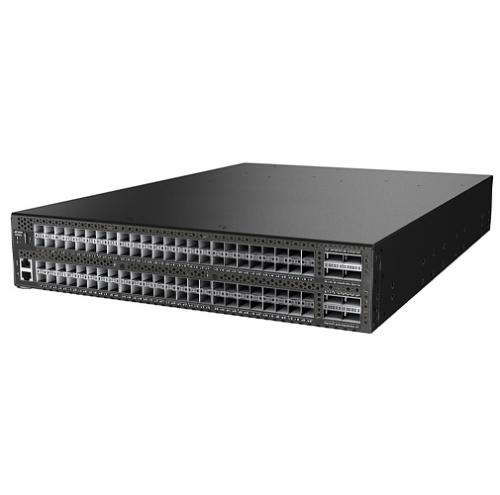

Product: ThinkSystem DB630S G6 32GB FC SAN Switch

Machine Type:7D1S

Form Factor: Standalone or 2U rack mount

Ports:

96x SFP+ ports:

Model CTO5: 48 ports activated and 48x 32 Gb FC SWL SFP+ transceivers included; up to two optional 24-port activation licenses or bundles (24-port licenses and 24x 32 Gb FC SWL SFP+ transceivers)

Model CTO6: 96 ports activated and 96x 32 Gb FC SWL SFP+ transceivers included

8x QSFP+ ports (require an optional activation license or bundle [32-port license pack and 8x 128 Gb FC SWL SFP+ V2 transceivers])

Media types:

128 Gb (4x 32 Gb) FC QSFP+: short wavelength (SWL), long wavelength (LWL)

4x 16 Gb FC QSFP+: SWL

32 Gb FC SFP+: SWL, LWL, extended long wavelength (ELWL)

16 Gb FC SFP+: SWL, LWL, extended long wavelength (ELWL)

10 Gb FC SFP+: SWL, LWL

Port speeds:

128 Gb (4x 32 Gb) FC SWL QSFP+: 128 Gbps, 4x 32 Gbps, or 4x 16 Gbps

128 Gb (4x 32 Gb) FC LWL QSFP+: 128 Gbps or 4x 32 Gbps fixed

4x 16 Gb FC QSFP+: 4x 16/8/4 Gbps auto-sensing

32 Gb FC SFP+: 32/16/8 Gbps auto-sensing

16 Gb FC SFP+: 16/8/4 Gbps auto-sensing

10 Gb FC SFP+: 10 Gbps fixed

Note: With Fabric OS 9.0 and later, the 4 Gbps port speed is supported only on the F_Port and N_Port port types.

FC port types:F_Port, E_Port, EX_Port (Requires an optional Integrated Routing License), M_Port (Mirror Port), D_Port (Diagnostic Port)

Data traffic types:Unicast (Class 2 and Class 3), multicast (Class 3 only), broadcast (Class 3 only)

Classes of service:Class 2, Class 3, Class F (inter-switch frames)

Standard features:Full Fabric mode, Advanced Zoning, Fabric Services, 10 Gb FC, Adaptive Networking, Advanced Diagnostic Tools, Virtual Fabrics, In-flight Compression, In-flight Encryption

Optional features:

Enterprise Bundle (Inter-Switch Link (ISL) Trunking, Fabric Vision, Extended Fabric) and Integrated Routing

Performance:Non-blocking architecture with wire-speed forwarding of traffic:

4GFC: 4.25 Gbit/sec line speed, full duplex

8GFC: 8.5 Gbit/sec line speed, full duplex

10GFC: 10.51875 Gbit/sec line speed, full duplex

16GFC: 14.025 Gbit/sec line speed, full duplex

32GFC: 28.05 Gbit/sec line speed, full duplex

128GFCp: 4x 28.05 Gbit/sec line speed, full duplex

Aggregated throughput: 4 Tbps

Latency for locally switched ports is <780 ns; latency between port groups is 2.6 µs, cut-through routing at 32 Gb/s between locally switched groups. Encryption/compression is 1 µs per node.

Scalability:

Maximum number of switches in the fabric: 239

Maximum frame size: 2112-byte payload

Maximum number of frame buffers per switch: 15,360

Maximum number of ports per ISL trunk: 8x SFP+ or 2x QSFP+ (Up to 256 Gbps; ISL Trunking license is included in the Enterprise Bundle)

Cooling:Three hot-swap system fan assembly units (two fans in each unit) with N+1 cooling redundancy. Non-port to port side airflow.

Power supply:Two redundant hot-swap 1500 W AC (100 - 240 V) power supplies (IEC 320-C14 connector)

Hot-swap parts:SFP+/QSFP+ transceivers, fan assembly units, and power supplies

Fabric services:Monitoring and Alerting Policy Suite (MAPS); Flow Vision; Brocade Adaptive Networking (Ingress Rate Limiting, Traffic Isolation, QoS); Fabric Performance Impact (FPI) Monitoring; Slow Drain Device Quarantine (SDDQ); Brocade Advanced Zoning (default zoning, port/WWN zoning, broadcast zoning, peer zoning, target-driven zoning); Dynamic Path Selection (DPS); Brocade Extended Fabrics; Enhanced BB Credit Recovery; FDMI; Frame Redirection; Frame-based Trunking; FSPF; Integrated Routing; Brocade ISL Trunking; Management Server; NPIV; Time Server; Registered State Change Notification (RSCN); Reliable Commit Service (RCS); Simple Name Server (SNS); Virtual Fabrics (Logical Switch, Logical Fabric); Read Diagnostics Parameter (RDP)

Management ports:One 10/100/1000 Mb Ethernet port (UTP, RJ-45); one RS-232 port (RJ-45); one USB port (for additional firmware/log/configuration files storage)

Supported management software:HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), SSH; Auditing, Syslog; Brocade Advanced Web Tools; Brocade Network Advisor SAN Enterprise or Brocade Network Advisor SAN Professional/Professional Plus; Brocade SANnav Management Portal and SANnav Global View; Command Line Interface (CLI); SMI-S compliant; trial licenses for add-on capabilities.

Security features:DH-CHAP (between switches and end devices), FCAP switch authentication; HTTPS, IPsec, IP filtering, LDAP with IPv6, OpenLDAP, Port Binding, RADIUS, TACACS+, user-defined Role-Based Access Control (RBAC), Secure Boot, Secure Copy (SCP), Secure RPC, Secure Syslog, SFTP, SSH v2, SSL, Switch Binding, Trusted Switch. The Brocade G630 Switch provides up to 12 in-flight encryption and compression ports.

Diagnostics: ClearLink optics and cable diagnostics, including electrical/optical loopback, link traffic/latency/distance; flow mirroring; built-in flow generator; POST and embedded online/offline diagnostics, including environmental monitoring, FCping and Pathinfo (FC traceroute), frame viewer, non-disruptive daemon restart, optics health monitoring, power monitoring, RAStrace logging, and Rolling Reboot Detection (RRD).

Firmware entitlement:One-year firmware entitlement and support license is included. Firmware entitlement extension licenses are included in the warranty upgrades.

Dimensions:Height: 87 mm (3.4 in.); width: 440 mm (17.3 in.); depth: 610 mm (24.0 in.)

Weight: Empty: 19.05 kg (42.0 lb.); Fully configured: 21.3 kg (47.0 lb.)

Warranty and support:One-year customer-replaceable unit limited warranty with 9x5 next business day parts delivered. Optional warranty upgrades are available through Lenovo Services: 9x5 next business day onsite response, 24x7 2-hour or 4-hour onsite response, 24x7 6-hour or 24-hour committed service repair (available in select countries), up to 5 years of warranty coverage, 1-year or 2-year post-warranty extensions.
