Brand: HP

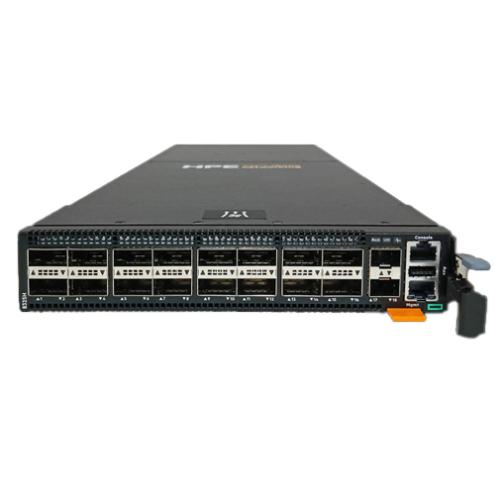

Product: Aruba Networking CX 8325 Switch Series
CX 8325H has two variations: 2.16Tbps half-width fixed switch that supports 18 ports of 1/10/25 and 4 ports of 40/100GbE ; 4Tbps half-width fixed switch that supports 16 ports of 40/100 GbE
Power consumption:618W maximum, depending on model
Input voltage:100 to 240 VAC -36 to -72 VDC
Ports:(48) 25G SFP28 ports and (8) 100G QSFP28 ports, or (32) 100G QSFP28 ports, maximum depending on model
Switch fabric speed:6.4 Tbps maximum, depending on model
Stacking capabilities:These switches serve the needs of the next-generation core and aggregation layer, as well as emerging data center requirements at the Top of Rack (ToR) and End of Row (EoR).
Throughput:For CX 8325 and CX 8325P - 2000 Mpps maximum, depending on model
For CX 8325H 18Y4C: 1000 Mpps
For CX 8325H 16C : 2000 Mpps
Memory and processor:For CX 8325 modes: CPU: 2.2 GHz
Memory: Drive and Flash 16 GB RAM, 64 GB SSD, 8 GB Flash
Packet Buffer: 32 MB
CPU: AMD x86 8 Core
Memory: 32 GB, 128 GB SSD
Packet Buffer: 32 MB
Power supply name:Field-replaceable, hot-swappable, and up to 2 power supplies, except CX 8325H models (Fixed).
Management features:Industry-standard CLI with a hierarchical structure;SNMP v2c/v3;sFlow (RFC 3176);Remote monitoring (RMON);Precision Time Protocol (PTP Class C (G.8275.1/.2)
Weight:(48) 10 kg (32) 10.87 kg ((48) 22.05 lb (32) 23.96 lb)
Dimensions:(48) 4.35 x 43.84 x 53.6 cm (32) 4.395 x 44.25 x 47.3 cm ((48) 1.71 x 17.26 x 21.1 in (32) 1.73 x 17.42 x 18.62 in)
Warranty:- 5-year Warranty (purchased prior to November 1st, 2019)
