-Wi-Fi CERTIFIED 6 wireless access point, with 2.5 GbE uplink port
-2.5 GbE uplink port provides up to 2x more bandwidth than 1 GbE ports without the need for new Cat5/6(a) cables to be installed.
-Four 1 GbE downlink ports that supply up to 2x 15W of PoE (802.3af).
-Up to 1.7 Gbps aggregate wireless throughput.
Brand: HP

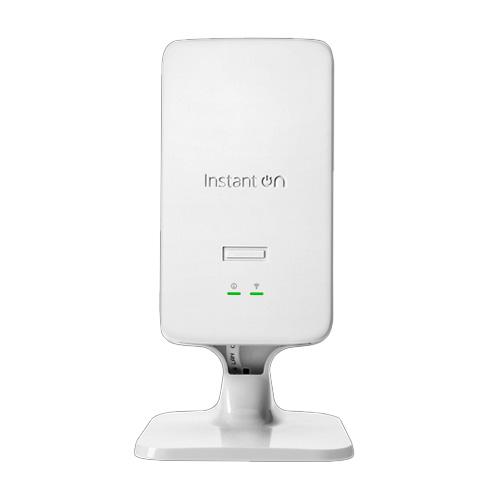

Product: HPE Networking Instant On AP22D Wireless Access Point
Certifications: Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Input voltage: PoE: 802.3bt (class 6) Full functionality or 802.3at (class 4) limited functionality DC power (48V)
PoE In: 802.3at/802.3bt
POE Out: 2x 15W PoE (802.3af)
Note: Power sources are sold separately unless you purchase the bundle SKU
Wi-Fi antenna:
Antennas: Dual semi-directional 2x2 MIMO
Antenna Gain: 5.2 dBi in 2.4GHz and 5.4 dBi in 5 GHz
Maximum transmit power:
5 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
2.4 GHz band: +20 dBm (+17 dBm per chain, 3 dB MIMO gain)
Connectivity, standard: Ultra-fast 802.11ax
Ports: 1x 2.5 GbE Base-T PoE Class 4/6 uplink
2x 1 GbE Base-T PoE Class 3 downlink
2x 1 GbE Base-T downlink
DC power connector
LED status indicators
Reset/LED control button
Kensington security slot
Mounting: Gang wall box-mount kit or Desk-mount kit
Power consumption: 51W (PoE) or 50W (DC)
Radio coverage: Dual-radio 802.11ax
2x2 5 GHz/2.4 GHz MIMO
Warranty: Instant On 2-year warranty
