-AI-powered Wi-Fi 7 access points ideal for the most demanding enterprise, healthcare, LPV, education, retail, and industrial IoT deployments.

-Three 4x4 MIMO radios provide comprehensive tri?band coverage across 2.4 GHz, 5 GHz, and 6 GHz for up to 18.7 Gbps maximum aggregate data rate.

-High availability with dual 10 Gbps wired ports for redundant Ethernet and power, as well as the ability to combine (sum) power from both ports.

-High density IoT support with two integrated1 Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions.

-Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable Access Points to self locate and act as reference points for accurate indoor location measurements.

-Patented Ultra Tri-band (UTB) filtering enhances use of 5 GHz and 6 GHz bands.

Brand: HP

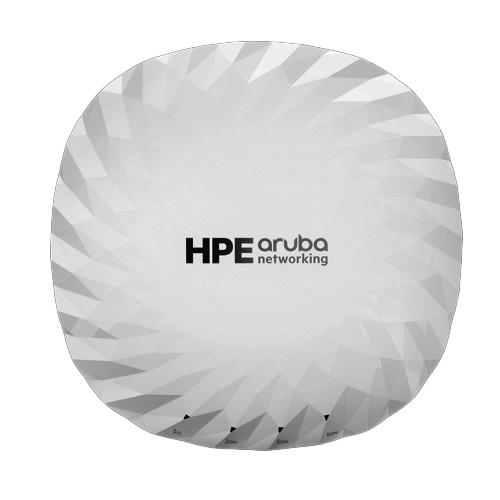

Product: HP Aruba Networking 750 Campus Wireless Access Point

Certifications: Bluetooth SIG

Ethernet Alliance (PoE, PD device, Class 6)

UL2043 plenum rating

Wi?Fi Alliance (WFA)

Wi?Fi CERTIFIED a, b, g, n, ac, 6, 7

WPA, WPA2 and WPA3- Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)

WMM, WMM?PS, W?Fi Agile Multiband

Regulatory:

FCC/ISED;

CE Marked;

RED Directive 2014/53/EU;

EMC Directive 2014/30/EU;

Low Voltage Directive 2014/35/EU;

UL/IEC/EN 60950;

IEC/EN 62368?1;

EN 60601?1?1;

EN60601?1?2

For more country?specific regulatory information and approvals, please see your HPE Aruba Networking representative.

WiFi antenna: AP?754: Two sets of four (female) RP?SMA connectors for external antennas (A0 through A3 corresponding with radio chains 0 through 3 for the 2.4 GHz and 5 GHz radios, and B0 through B3 corresponding with radio chains 0 through 3 for the 6 GHz radio). Worst?case internal loss between radio interface and external antenna connectors: 1.1 dB in 2.4 GHz, 1.8 dB in 5 GHz, and 2.8 dB in 6 GHz.

AP?755: Integrated down tilt omni?directional antennas for 4x4 MIMO with peak antenna gain of 5.3 dBi in 2.4 GHz, 6.0 dBi in 5 GHz (5.8 dBi in dual?5 GHz mode) and 6.0 dBi in 6 GHz (5.9 dBi in dual?6 GHz mode). Built?in antennas are optimized for horizontal ceiling mounted orientation of the AP. The down tilt angle for maximum gain is roughly 30 to 40 degrees.

Connectivity, standard: Wi-Fi 7 (802.11be)

Ports: E0, E1: Two Ethernet wired network ports (RJ?45);

U0, U1: Two USB 2.0 host interface (Type A connector);

Serial console interface (proprietary, micro?B USB physical jack);

Kensington security slot;

Mounting: A mounting bracket has been preinstalled on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately). Optional mounting kits available, see the ordering guide.

Power consumption: Maximum (worst case) power consumption (without/with USB devices attached):

DC powered: 35W/46W

PoE powered: 40W/51W

This assumes that up to 10W is supplied to the attached USB device(s)

Maximum (worst?case) power consumption in idle mode: 14W/25W (DC) or 12W/23W (PoE)

Maximum (worst?case) power consumption in deep?sleep mode: 2.4W (DC) or 3.5W (PoE)

Radio coverage: AP type: Indoor, tri radio, 2.4 GHz, 5 GHz and 6 GHz (concurrent) 802.11be 4x4 MIMO

Warranty: Limited lifetime warranty.
