-Wi-Fi 7 access points ideal for enterprises, healthcare, LPV, education, retail, and industrial IoT deployments.

-Comprehensive tri?band coverage across 2.4 GHz, 5 GHz, and 6 GHz delivers up to 9.3 Gbps maximum aggregate data rate.

-Patented Ultra Tri-band (UTB) filtering improves the use of 5 GHz and 6 GHz bands.

-High density IoT support with two integrated Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions.

-Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable Access Points to self locate and act as reference points for accurate indoor location measurements.

-High availability with dual 5 Gbps ports for redundant Ethernet and power.

Brand: HP

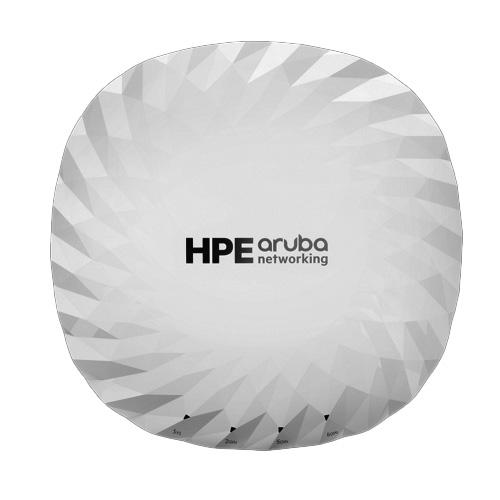

Product: HP Aruba Networking 730 Campus Wifi Access Point

Certifications: Bluetooth SIG; Ethernet Alliance (PoE, PD device, Class 5); UL2043 plenum rating;

Wi?Fi Alliance (WFA):

Wi?Fi CERTIFIED a, b, g, n, ac, 6, 7

WPA, WPA2 and WPA3

Enterprise with CNSA option

Personal (SAE), Enhanced

Open (OWE)

WMM, WMM?PS, W?Fi Agile Multiband

Input voltage: PoE?PD: 48Vdc (nominal) 802.3at/bt PoE (Class 4 or higher);

DC power interface: 12 VDC(nominal, +/? 5%), accepts 2.1mm/5.5mm center?positive circular plug with 9.5mm length

Regulatory: FCC/ISED; CE Marked; RED Directive 2014/53/EU; EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU; UL/IEC/EN 60950; IEC/EN 62368?1; EN 60601?1?1, EN60601?1?2

Wi-Fi antenna: AP?734: Two sets of two (female) RP?SMA connectors for external antennas (A0 and A1 corresponding with radio chains 0 and 1 for the 2.4 GHz and 5 GHz radios, and B0 and B1 corresponding with radio chains 0 and 1 for the 6 GHz radio). Worst?case internal loss between radio interface and external antenna connectors: 0.8 dB in 2.4 GHz, 1.2 dB in 5 GHz, and 1.2 dB in 6 GHz.

AP?735: Integrated down-tilt omni?directional antennas for 2x2 MIMO with peak antenna gain of 5.1dBi in 2.4 GHz, 5.5dBi in 5 GHz (5.2dBi in dual?5 GHz mode) and 5.3dBi in 6 GHz (5.2dBi in dual?6 GHz mode). Built?in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 to 40 degrees.

Connectivity, standard: Wi-Fi 7 (IEEE 802.11be)

Ports: E0, E1: Two Ethernet wired network ports (RJ?45);

U0, U1: Two USB 2.0 host interface (Type A connector);

Kensington security slot;

Serial console interface (proprietary, micro?B USB physical jack);

Reset button: Factory reset, LED mode control (normal/off);

Visual indicators (four multi?color LEDs) for System (1x) and Radio (3x) status

Mounting: A mounting bracket has been preinstalled on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately). Optional mounting kits available, see the ordering guide.

Power consumption: Maximum (worst case) power consumption (without/with USB devices attached):

DC powered: 20W/31W.

PoE powered: 24W/36W.

Notes:

This assumes that up to 10W is supplied to the attached USB device(s).

Maximum (worst?case) power consumption in idle mode: 8W/19W (DC) or 12W/24W (PoE).

Maximum (worst?case) power consumption in deep?sleep mode: 1.5W (DC) or 2.0W (PoE).

Radio coverage: AP type: Indoor, tri radio, 2.4 GHz, 5 GHz and 6 GHz (concurrent) 802.11be 2x2 MIMO

Warranty: Limited lifetime warranty.
