-Flagship Wi-Fi 6E access points provide tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate.
-4x4 MIMO radios to deliver peak performance and increased capacity using multi-user (MU-MIMO) and orthogonal frequency-division multiple access (OFDMA) (uplink and downlink for both).
-Patented ultra tri-band (UTB) filtering enhances the use of 5 GHz and 6 GHz bands.
-High availability with dual 5 Gbps wired ports for redundant Ethernet and power.
-Built-in GPS receivers and intelligent software enable APs to self-locate and act as reference points for more accurate indoor location measurements.
-Internet of Things (IoT) ready with support for Bluetooth Low Energy (BLE) and Zigbee.
Brand: HP

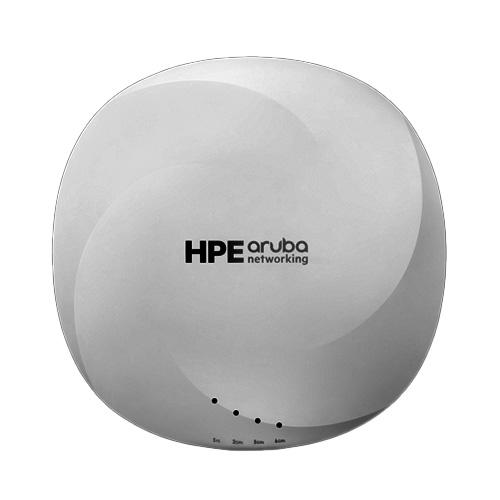

Product: HP Aruba Networking 650 Campus Access Point
Certifications: UL2043 plenum rating
Wi-Fi Alliance (WFA):
Wi-Fi CERTIFIED a, b, g, n, ac
Wi-Fi CERTIFIED 6E (ax, 6GHz)
WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, W-Fi Agile Multiband
Passpoint (release 2)
Bluetooth SIG
Ethernet Alliance (PoE, PD device, class 6)
Regulatory: The Wi-Fi 6E APs allow countries to take advantage of Wi-Fi 6E once it is approved in country via automated notification and easy deployment of 6 GHz regulatory rules.
For country-specific regulatory information and approvals, please see your HPE Networking representative.
Wi-Fi antenna: AP-654 supports external antennas.
AP-655 has internal antennas.
Connectivity, standard: Wi-Fi 6E (IEEE 802.11ax)
Mounting: A mounting bracket has been preinstalled on the back of the access point. This bracket is used to secure the access point to any of the mount kits (sold separately). For use with optional mounting kit, see the ordering guide.
Radio coverage: Indoor, tri-radio, 2.4 GHz, 5 GHz and 6 GHz (concurrent) 802.11ax 4x4 MIMO
Weight: 1800g (3.97lb)
Dimensions: 260mm x 260mm x 56mm (10.24in x 10.24in x 2.2in)
Warranty: Limited lifetime warranty. See the warranty duration.
