-Three radios to extend the benefits of Wi-Fi 6E to the 6 GHz band –unlocking up to 1200 MHz of spectrum.

-Wider channels and less interference to deliver faster speeds for ow-latency, bandwidth-hungry applications like high-definition video and augmented reality/virtual reality.

-Unique filtering capabilities to mitigates gaps in coverage and help minimize interference between the 5 GHz and 6 GHz bands.

-High availability with hitless failover for Ethernet and power to help ensure business continuity.

-Automated notification and easy deployment of 6 GHz regulatory tables to allow countries to take advantage of Wi-Fi 6E once it is approved in country.

Brand: HP

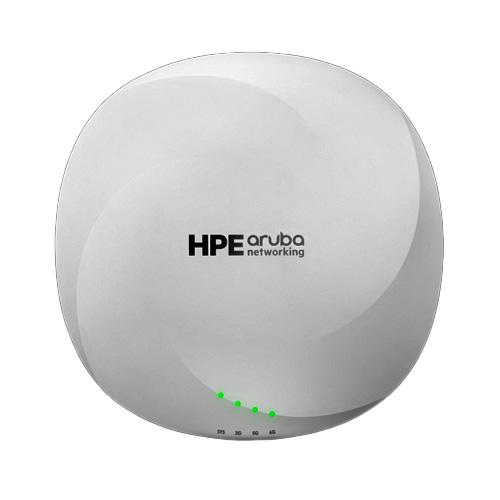

Product: HP Aruba Networking 630 Campus Wifi Access Point

Certifications: UL2043 plenum rating; Wi-Fi Alliance; Wi-Fi CERTIFIED a, b, g, n, ac; Wi-Fi CERTIFIED 6E (ax, 6GHz); WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE); WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband; Wi-Fi Location; Passpoint (release 2); Bluetooth SIG; Ethernet Alliance (POE, PD device, class 5)

Input voltage: 12 Vdc (+/- 5%) or 48 Vdc (nominal) PoE

Regulatory:

FCC/ISED; CE Marked; RED Directive 2014/53/EU; EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU; UL/IEC/EN 60950; IEC/EN 62368-1; EN 60601-1-1, EN60601-1-2

For more country-specific regulatory information and approvals, contact see your HPE Aruba Networking representative.

Regulatory considerations for AP-634:

The AP-634 will be offered in countries where there is an existing or clear and defined path to allow operation of 6 GHz radios with external connectorized antennas, either as a low power indoor or standard power  product. Please contact your HPE Aruba Networking representative to confirm (existing or planned) availability for the country where the AP will be deployed.

WiFi antenna:

AP-634 (external antenna support): Two sets of two (female) RP-SMA connectors for external antennas (A0 & A1 corresponding with radio chains 0 and 1 for the 2.4 GHz and 5 GHz radios, and B0 and B1 corresponding with radio chains 0 and 1 for the 6 GHz radio). Worst-case internal loss between radio interface and external antenna connectors: 1.0 dB in 2.4 GHz, 1.0 dB in 5 GHz and 1.0 dB in 6 GHz.

AP-635 (internal antenna): Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.6 dBi in 2.4 GHz, 7.0 dBi in 5 GHz and 6.3 dBi in 6 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 to 40 degrees.

Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 2.9 dBi in 2.4 GHz, 4.9 dBi in 5 GHz and 4.3 dBi in 6 GHz.

Heat dissipation: 66.3 BTU/hr worst case (PoE powered), 57.9 BTU/hr worst case (DC)

Connectivity, standard: Wi-Fi 6E (IEEE 802.11ax)

WLAN: tri radio, 2.4 GHz, 5 GHz and 6 GHz (concurrent) 802.11ax 2x2 MIMO

Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio

Ports: E0, E1: Two Ethernet wired network ports (RJ-45), auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX

DC power interface

USB 2.0 host interface (Type A connector)

Visual indicators (four multi-color LEDs)

Reset button: factory reset, LED mode control

Mounting: A mounting bracket has been preinstalled on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately). Optional mounting kits available, see the ordering guide.

Power consumption: 23.8 W worst case (POE powered), 20.7 W worst case (DC). Excludes power needed to supply up to 5W to an attached USB device.

Radio coverage: Indoor, tri radio, 2.4 GHz, 5 GHz and 6 GHz (concurrent) 802.11ax 2x2 MIMO

Weight: 1300g (2.86lb)

Dimensions: 220mm x 220mm x 50mm (8.66in x 8.66in x 1.96in)

Warranty: Limited lifetime warranty. See the warranty duration.
