-Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and up to 3.6 Gbps combined peak datarate.
-Up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and augmented reality/virtual reality applications.
-Software programable, dual-radio operating modes deliver cost-effective coverage across any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz with full tri-band coverage in multi-AP deployments.
-Low power consumption enables unrestricted operation from an 802.3af (Class 3) PoE source1.
-Built-in GPS receivers and fine time measurement allow APs to automatically locate themselves and serve as reference points for accurate indoor location measurements.
-Offered as optional eco-friendly 10-pack.
Brand: HP

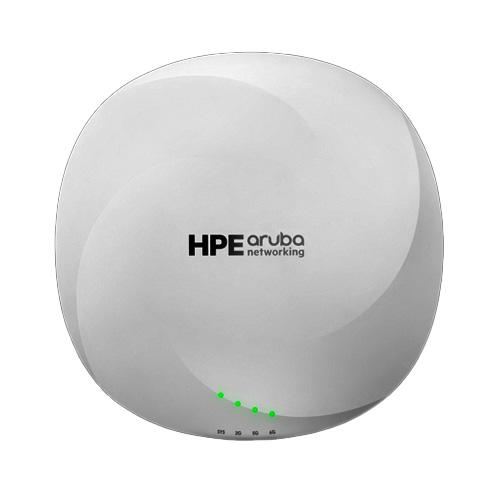

Product: HP Aruba Networking 610 Campus Wifi Access Point
Certifications: UL2043 plenum rating;
Bluetooth SIG;
Ethernet Alliance (PoE, PD device, Class 4);
Wi-Fi Alliance (WFA): Wi-Fi CERTIFIED a, b, g, n, ac, Wi-Fi CERTIFIED 6E (ax, 6 GHz), WPA, WPA2 and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE), WMM, WMM-PS, W-Fi Agile Multiband, Wi-Fi CERTIFIED Location™
Input voltage: The AP supports direct DC power and Power over Ethernet (PoE) on port E0
Regulatory: AP-615 (all models): APIN0615
FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 62368-1
EN 60601-1-1, EN60601-1-2
Wi-Fi antenna: AP-615: Integrated downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 2.8 dBi in 2.4 GHz, 4.5 dBi in 5 GHz and 4.5 dBi in 6 GHz.
Connectivity, standard: Wi-Fi 6E (802.11ax)
Ports:
E0: Ethernet wired network ports (RJ-45)
DC power interface: 12 Vdc (nominal, +/- 5%)
USB 2.0 host interface (Type A connector)
Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio
Visual indicators (four multi-color LEDs)
Reset button: factory reset, LED mode control (normal/off)
Serial console interface (proprietary, micro-B USB physical jack)
Kensington security slot
Mounting: A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately); see the 610 Series ordering guide for details.
Power consumption: Maximum (worst-case) power consumption:
DC powered:12.5W/18.2W
POE powered: 14.7W/20.9W
Radio coverage: Indoor, dual-radio/tri-band 2.4 GHz, 5 GHz and 6 GHz (dual concurrent) 802.11ax 2x2 MIMO
Weight: 0.72 kg (1.59 lb)
Dimensions: 5.1 x 20.1 x 18.3 x cm (2 x 7.9 x 7.2 in)
Warranty: Limited lifetime warranty. See the warranty duration guide.
