-Purpose-built to survive in one of the harshest outdoor environments with Hazardous Location Class 1 Division 2, and ATEX Zone 2, and IP66 rating for hazardous locations.
-Wi-Fi 6 capabilities to deliver multi-gigabit performance and speed with a maximum aggregate data rate of 2.97 Gbps.
-The AP supports for 5 Gbps multi-gigabit Ethernet ports and 802.3bt Class 6 power or AC power included, no need for add-on AC power adapters.
-Features high power Bluetooth1 and 802.15.4/Zigbee support for Industrial IoT.
-Seamless connectivity with RF automation (AirMatch), client optimization (ClientMatch), and AIOps (AI Insights) for built-in configuration recommendations.
Brand: HP

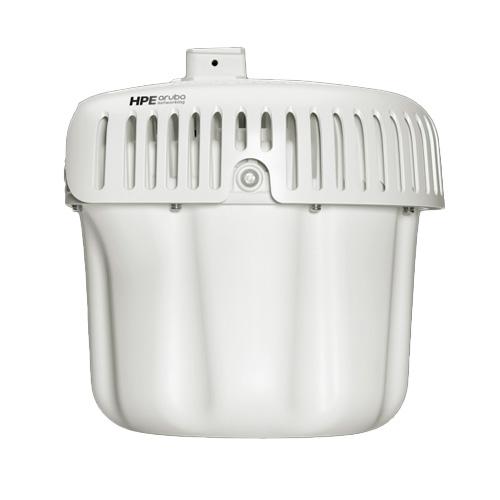

Product: HP Aruba Networking 580EX Hazardous Access Point
Certifications:
Wi-Fi Alliance
Bluetooth SIG
Ethernet Alliance (E0, PoE PD device, Class 6; E2, PoE PSE device, Class 3)
Class 1 Div 2
ATEX Zone 2
IECEx
Input voltage: AC power interface: 110-240V (requires AP-AC-MLX power connector BT)
Regulatory:
FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
IEC 60950-22
UL/IEC/EN 62368-1
IEC/EN60601-1-2
EN 50155
EN IEC 60079-0
EN IEC 60079-7
IEC 60079-0
IEC 60079-7
CSA C22.2 No.213-17
UL 121201
UL 50E
Wi-Fi antenna: AP-585EX: Four integrated dual-band omni-directional antennas for 4x4 MIMO with peak antenna gain of 4.4 dBi in 2.4 GHz and 5.8 dBi in 5 GHz.
AP-587EX: Four integrated 90°H x 90°V dual-band directional antennas for 4x4 MIMO with peak antenna gain of 5.8 dBi in 2.4 GHz and 6.6 dBi in 5 GHz.
Connectivity, standard: Wi-Fi 6 (IEEE 802.11ax)
Mounting: Optional mounting kits available, see the ordering guide.
Power consumption: The AP supports direct AC power and Power over Ethernet (802.3bt PoE; on port E0 only).
When both AC and PoE power sources are available, AC power takes priority over PoE.
Power sources are sold separately.
Maximum (worst-case) power consumption:
AC powered: 71W (802.3af/at*).
PoE powered (802.3bt Class 6): 49.5W (802.3af PSE only).
PoE powered (802.3bt Class 5): 35.5W (no PSE)
PoE powered (802.3at, IPM disabled): 25.5W (2 chains @ 2.4 GHz, 2 chains @ 5 GHz, no PSE).
Maximum (worst-case) power consumption in idle mode: 9.2W (PoE) or 10.8W (AC).
Maximum (worst-case) power consumption in deep-sleep mode: 3.0W (PoE) or 4.4W (AC).
NOTE: *With IPM enabled, the AP will adjust power requirements to meet requirements, and will reduce power as necessary according to the established IPM policy.
Radio coverage: AP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz and 2.4 GHz 802.11ax 4x4 MIMO.
5GHz radio: Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS HE80 (or 2SS HE160) 802.11ax client devices, or with four 1SS or two 2SS HE80 802.11ax MU-MIMO capable client devices simultaneously.
2.4GHz radio: Four spatial stream Single User (SU) MIMO for up to 1,150Mbps wireless data rate with individual 4SS HE40 802.11ax client devices or with two 2SS HE40 802.11ax MU-MIMO capable client devices simultaneously.
Weight:
AP-585EX models: 5.24 kg
AP-587EX models: 4.51 kg
AP-585EX models: 11.5 lbs
AP-587EX models: 9.9 lbs
Dimensions:
AP-585EX models: 32 x 32.4 x 31.3 cm (H x W x D)
AP-587EX models: 17.4 x 30.2 x 30 cm (H x W x D)
Not including mounting bracket
AP-585EX models: 9.6 x 12.6 x 12.3 in (H x W x D)
AP-587EX models: 6.9 x 5.9 x 11.8 in (H x W x D)
Not including mounting bracket
Warranty: Limited lifetime warranty. See the warranty duration.
