Brand: HP

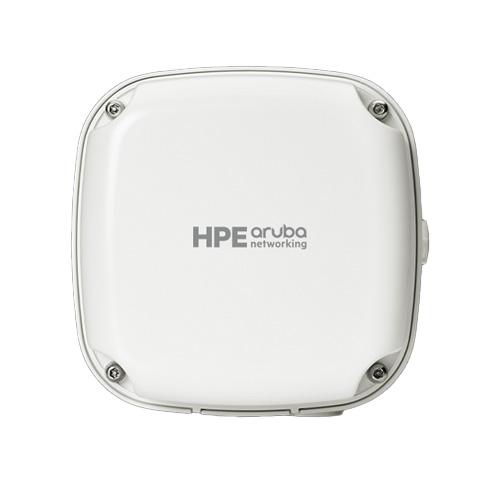

Product: HP Aruba Networking 560EX Hazardous Location Access Points
-Class 1 Division 2 and ATEX Zone 2 certified outdoor Wi-Fi 6 access points that provide up to 1.49 Gbps maximum aggregate data rate.
-Purpose built for hazardous locations and to survive in one of the harshest outdoor environments and extreme temperatures (-40?C to +65?C).
-Internet of Things (IoT)-ready with a built-in1 Bluetooth 5 and 802.15.4 radio that supports Zigbee.
-Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
-Dynamic Segmentation and policy enforcement firewalls (PEF) that automatically enforces consistent policies across all networks, keeping users and devices secure.
Certifications: CB Scheme Safety, cTUVus
UL2043 plenum rating
Wi-Fi Alliance certified 802.11a/b/g/n/
Wi-Fi Alliance certified Wi-Fi 6 (802.11ax)
Wi-Fi CERTIFIED ac (with wave 2 features)
Wi-Fi CERTIFIED Location
Class 1 Division 2 certified
ATEX Zone 2 certified
Regulatory: FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
IEC/EN/UL 62368-1
EN 60601-1-1, EN60601-1-2
Wi-Fi antenna: AP-565EX: Built-in Omni Directional Antennas
AP-567EX: Built-in 90°H x 90°V Directional Antennas
5GHz:
Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously.
2.4GHz:
Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously.
Connectivity, standard: Wi-Fi 6 (802.11ax)
Bluetooth 5 and 802.15.4 radio
2.4 GHz
Bluetooth 5: up to 8 dBm transmit power and -95 dBm receive sensitivity
Zigbee: up to 8 dBm transmit power and -97 dBm receive sensitivity
Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity
Visual indicator (multi-color LED): For system and radio status
Ports:
Reset button: Factory reset (during device power up)
USB-C console interface
E0: 10/100/1000BASE-T (RJ-45)
Auto-sensing link speed and MDI/MDX
PoE-PD: 48 VDC (nominal) 802.3at/bt (Class 3 or higher)
802.3az Energy Efficient Ethernet (EEE)
Mounting: Optional mounting kits available, see the ordering guide.
Power consumption: Maximum (worst-case) power consumption: 15.6W
Maximum (worst case) power consumption in idle mode: 4.2W
Maximum (worst case) power consumption in deep-sleep mode: 1.7
Power sources sold separately
Radio coverage: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
Up to 256 associated client devices per radio
Up to 16 BSSIDs per radio
Warranty: Limited lifetime warranty.
