-Wi-Fi 6 access points (APs) provide up to 2.97 Gbps combined aggregate data rate.
-Dual radio AP supporting 5 GHz and 2.4 GHz bands (4x4 MIMO).
-Protects network security with stronger encryption and authentication, secure credentials/keys storage, and user and IoT access policy enforcement firewalls (PEF).
-IoT-ready with support for1 Bluetooth 5 and Zigbee and two 5 Gbps ports for fast wired connectivity.
-Deploy models with internal antennas or connectorized models that support external antennas to meet range of environments.
Brand: HP

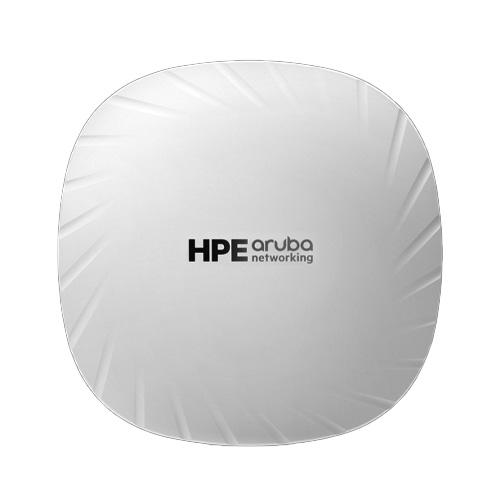

Product: HP Aruba Networking 530 Campus Wifi Access Point
Certifications: UL2043 plenum rating
Wi-Fi Alliance:
Wi-Fi CERTIFIED a, b, g, n, ac
Wi-Fi CERTIFIED 6 (ax)
WPA, WPA2 and WPA3
Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, W-Fi Agile Multiband
Wi-Fi CERTIFIED Location
Bluetooth SIG
Input voltage: IEEE 802.3bt (class 5) or 802.3at PoE, or direct DC power (via optional power supply)
Wi-Fi antenna:
AP-534: Four (female) RP-SMA connectors for external dual band antennas (A0 through A3, corresponding with radio chains 0 through 3). Worst-case internal loss between radio interface and external antenna connectors : 0.8 dB in 2.4 GHz and 1.3 dB in 5 GHz
AP-535: Four integrated dual-band down tilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 3.5 dB in 2.4 GHz and 5.4 dB in 5 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The down tilt angle for maximum gain is roughly 30 degrees.
Connectivity, standard: Wi-Fi 6 (IEEE 802.11ax)
Ports: (2) HPE Smart Rate RJ-45 port (maximum negotiated speed 5 Gbps)
Mounting: Pre-installed mounting bracket, for use with optional mounting kit, see the ordering guide.
Power consumption: POE powered (802.3bt or dual 802.3at): 30W POE powered (802.3at, IPM enabled): 25W DC powered: 29W; maximum (worst case)
Radio coverage: Dual-radio 4x4 MIMO IEEE 802.11ax AP with up-and downlink OFDMA and Multi-User MIMO (MU-MIMO). Maximum data rates of 2.4 Gbps in the 5 GHz band and 1,150 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 3.55 Gbps).
Weight: 1.0 kg (2.2 lb)
Dimensions: 57 x 240 x 240 mm (AP-534), 80mm x 270 x 270 mm (AP-535) (2.2 x 9.4 x 9.4 in (AP-534), 2.8 x 9.1 x 8.7 in (AP-535))
Warranty: Limited lifetime warranty. See the warranty duration.
