21.HPE Aruba Networking 503 Campus Access Points

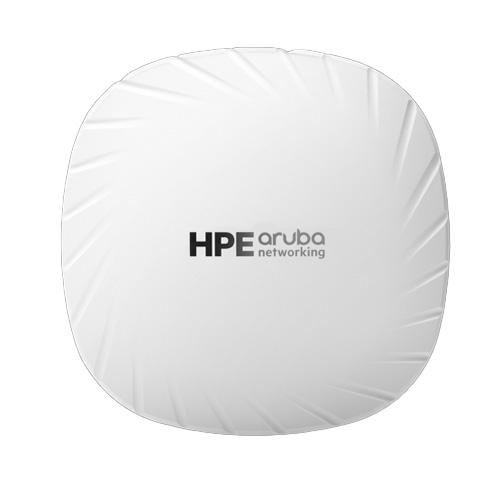

HP Aruba Networking 503 Series Campus Access Points
-Cost-effective Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate.
-Supports Wi-Fi 6 (802.11ax) features including OFDMA for enhanced multi-user efficiency and WPA and Enhanced Open for greater security.
-Dynamic Segmentation and policy enforcement firewalls automatically enforce consistent policies across wired and wireless networks, enhancing user and device security.
-Flexible management with AI-powered HPE Aruba Networking Central.
-Available as optional eco-friendly 10-packs.
Brand: HP
Product: HP Aruba Networking 503 Campus Wifi Access Point
Certifications: Ethernet Alliance (POE, PD device, Class 3)
Wi-Fi Alliance (WFA:
Wi-Fi CERTIFIED a, b, g, n, ac
Wi-Fi CERTIFIED 6
WPA, WPA2 and WPA3- Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, Wi-Fi Agile Multiband
Regulatory: FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 62368-1
Wi-Fi antenna: AP-503: Integrated down tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 1.7 dBi in 2.4 GHz and 4.8 dBi in 5 GHz.
Connectivity, standard: Wi-Fi 6 (IEEE 802.11ax)
Ports:
E0: Ethernet wired network port (RJ-45)
USB 2.0 host interface (Type A connector)
Serial console interface (proprietary, micro-B USB physical jack)
Mounting: Optional mounting kits available, see the ordering guide.
Radio coverage: AP type: Indoor, dual-radio, 2.4 GHz and 5 GHz (dual concurrent) 802.11ax 2x2 MIMO
Weight: 255g (0.5 lb)
Dimensions: 3.5 x 14.5 x 14.5 cm (1.38 x 5.7 x 5.7 cm)
Warranty: Limited lifetime warranty. See the warranty duration.
