-Entry level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate.
-Support for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security.
-IoT-ready with built-in1 Bluetooth 5 and Zigbee support.
-Dynamic Segmentation and policy enforcement firewalls automatically enforce consistent policies across wired and wireless networks, enhancing user and device security.
-Built-in technology that resolves sticky client issues and improves performance of mobile Wi-Fi clients.
-Available in optional eco-friendly 10-packs.
Brand: HP

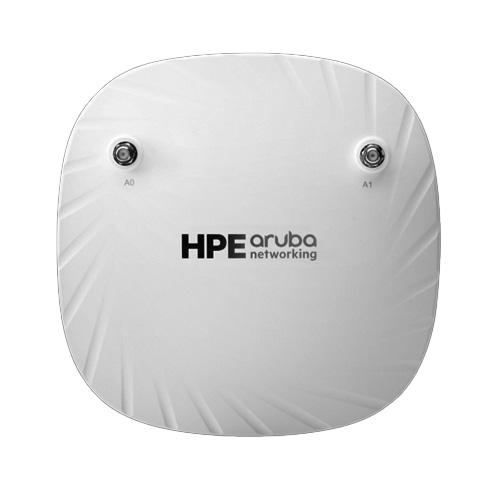

Product: HP Aruba Networking 500 Campus Access Point
Certifications: UL2043 plenum rating
Wi-Fi Alliance:
Wi-Fi CERTIFIED a, b, g, n, ac
Wi-Fi CERTIFIED 6 (ax)
WPA, WPA2 and WPA3-Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, W-Fi Agile Multiband
Wi-Fi CERTIFIED Location™
Bluetooth SIG
Ethernet Alliance (PoE, PD device, Class 4)
Regulatory: FCC/ISED
CE Marked
RED Directive 2014/53/EU
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 62368-1
EN 60601-1-1, EN60601-1-2
Wi-Fi antenna: AP-504 models: Two RP-SMA connectors for external dual band antennas.
AP-505 models: Two integrated dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.9 dBi in 2.4 GHz and 5.7 dBi in 5 GHz.
Connectivity, standard: Wi-Fi 6 (IEEE 802.11ax)
Ports:
E0: Ethernet wired network port (RJ-45)
USB 2.0 host interface (type A connector)
Serial console interface (proprietary, micro-B USB physical jack)
Kensington security slot.
Mounting: Optional mounting kits available, see the ordering guide.
Power consumption: Maximum (worst-case) power consumption (without/with a USB device attached):
PoE powered (802.3at): 11.0W / 16.5W
PoE powered (802.3af): 11.0W / 13.5W
This assumes that up to 5W is supplied to the attached USB device
Maximum (worst-case) power consumption in idle mode: 4.3W (DC) or 6.2W (PoE)
Maximum (worst-case) power consumption in deep-sleep mode: 1.7W (DC) or 3.7W (PoE)
Radio coverage: AP type: Indoor, dual radio, 5 GHz and 2.4 GHz 802.11ax 2x2 MIMO
5 GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with 2SS HE80 802.11ax client devices.
2.4 GHz radio: Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices.
Weight: 500 g (1.1 lb)
Dimensions: 37 x 160 x 161 mm (1.5 x 6.3 x 6.3 in)
Warranty: Limited lifetime warranty. See the warranty duration.
