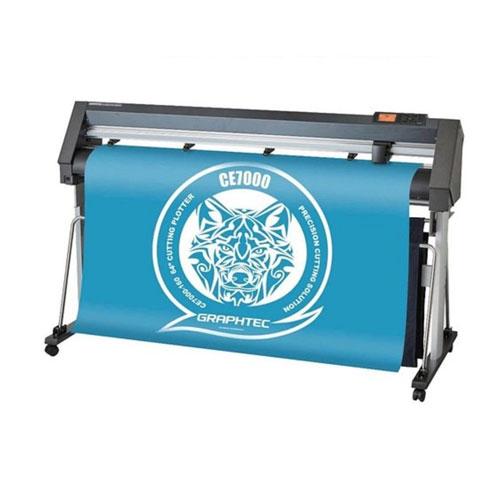

Graphtec CE7000 160 Desktop Cutting Plotter
Graphtec CE7000 160 Desktop Cutting Plotter Chennai, Hyderabad
- Brand: Graphtec
- Model No: Graphtec CE7000 160 Cutting Plotter
- Configuration: Grit rolling type
- Drive method: Digital servo drive
- Max. cutting area (W x L) (*1): 1524?? × 50?
- Cutting area of guaranteed accuracy (*1): 1504?? × 2m, (1504?? × 5?)
- Mountable media width: Min-50mm, Max-1626mm(64inch)
- Mountable roll media mass: 20 kg
- Number of push rollers: 4 rollers(Max. 5 (option))
- Max. cutting speed at all direction: 1000mm/s at 45° direction
- Acceleration: 13.9m/s2 at 45° direction
- Cutting force: Max. 4.41N (450gf)
- Minimum character size: Approx. 5 mm alphanumeric (varies depending on character font and media)
- Mechanical resolution: 0.005mm
- Programmable resolution: GP-GL?0.1/0.05/0.025/0.01???HP-GL™ (*2)?0.025??
- Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
- Mountable number of tools: 1 tool
- Blade types: Supersteel
- Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
- Media types: Up to 0.25mm thickness, Marking film (PVC / fluorescence / reflection), polyester film (With specified conditions)
- Interface: USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX
- Buffer memory: 2MB
- Command sets: GP-GL / HP-GL™ (Set by command or auto-detect) (*2)
- Display: Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
- Power source: 100V to 240V AC, 50 / 60 Hz
- Power consumption: Up to 100W
- Operating environment: 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
- Guaranteed accuracy environment: 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
- External dimensions: 1916×811×1215 mm (1916×1148×1215 mm)(*3)
