Brand : Fortinet

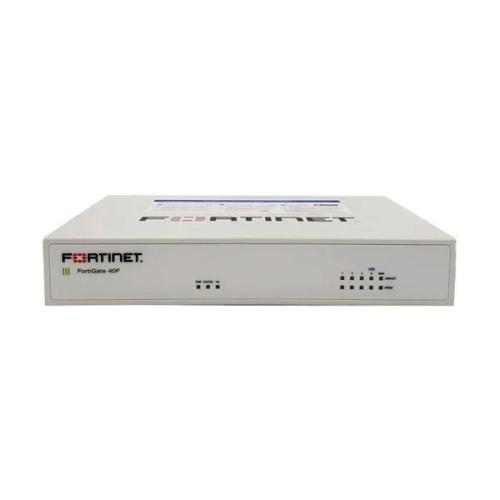

Product : FortiWiFi FG 40F Firewall
RJ45 ports: 5 x GE RJ45 ports (including , 1 x WAN Port, 4 x Internal Ports)
IPS Throughput: 1 Gbps
NGFW Throughput: 800 Mbps
Threat Protection Throughput: 600 Mbps
IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP): 5 / 5 / 5 Gbps
Firewall Latency(64 byte UDP packets): Firewall Latency (64 byte, UDP) 2.97 ?s
Firewall Throughput(Packets Per Second): 7.5 Mpps
Concurrent Sessions (TCP): 700 000
New Sessions/Second(TCP): 35 000
Firewall Policies: 2000
IPsec VPN Throughput (512 byte): 4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 200
Client-to-Gateway IPsec VPN Tunnels: 250
SSL Inspection Throughput(IPS, avg. HTTPS): 310 Mbps
SSL Inspection CPS(IPS, avg. HTTPS): 320
SSL Inspection Concurrent Session (IPS, avg. HTTPS): 55 000
Application Control Throughput (HTTP 64K): 990 Mbps
CAPWAP Throughput(HTTP 64K): 3.5 Gbps
Virtual Domains(Default/Maximum): 10 / 10
High Availability Configurations Active-Active, Active-Passive, Clustering
Dimensions(L x W X H ): 40.5 x 142 x 160
Weight: 1.3 lbs (0.6 kg)
