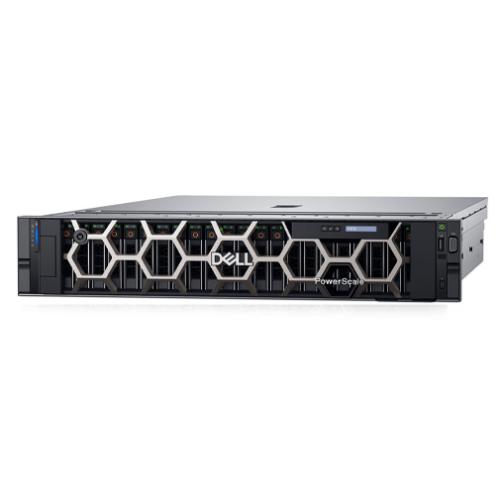

Dell PowerScale F910 NAS Storage
Dell PowerScale F910 NAS Storage Chennai, Hyderabad
- Brand: Dell
- Raw node capacity: 92 TB - 2.9 PB
- Nodes per cluster: 3 up to 252
- Raw cluster capacity: 276 TB - 737 PB
- Memory: 512 GB
- Storage type: NVMe SSD (TLC, QLC)
- SSD drives per node: 24
- Processor: 2 Intel Xeon CPUs, 2.4GHz/24C
- Functional: All-flash, all-NVMe NAS, Scale-out storage
- Memory: 512GB DRAM DDR5 ECC
- Base enclosure: 2U Form Factor, 24x2.5” NVMe SSD drives
- Expansion Capacity: Scale-out architecture, Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
- Expansion enclosures: Minimum cluster size: 3 nodes, Maximum cluster size: 252 nodes
- Front End Networking (per node): Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28), Dual port 100G NIC supporting 40G or 100G connections
- Infrastructure Networking (per node): 2 InfiniBand connections with QDR links or Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28)
- Media Types: NVMe SSDs, 3.84 TB (TLC), 7.68 TB (TLC), 15.36 TB (QLC), 30.72 TB (QLC)
- Form Factor: 2U
- Height: 86.8 mm / 3.41 in.
- Width: 482 mm / 18.97 in.
- Depth: 772.13 mm / 30.39 in. with bezel
- Weight: 32.75 kg / 72.2 lbs
- Power: 1400 W, Dual redundant power supplies
- Max Power consumption : (200-240V per node) , 25°C – 877 Watts, 35°C – 913 Watts
- Typical Thermal rating: 25°C – 2992 BTU/hr, 35°C – 3115 BTU/hr
