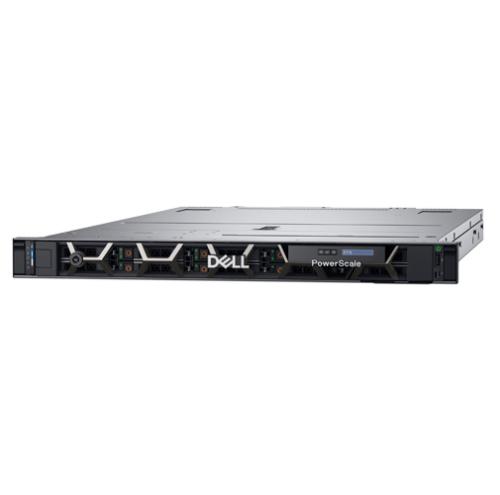

Dell PowerScale F710 Network Attached Storage
Dell PowerScale F710 Network Attached Storage Chennai, Hyderabad
- Brand: Dell
- Raw node capacity:38 TB - 1.2 PB
- Nodes per cluster:3 up to 252
- Raw cluster capacity:115 TB - 307 PB
- Memory:512 GB
- Storage type:NVMe SSD (TLC, QLC)
- SSD drives per node:10
- Processor: 2 Intel Xeon CPUs, 2.6GHz/24C
- Functional: All-flash, all-NVMe NAS, Scale-out storage
- Memory: 512 GB DRAM DDR5
- Base enclosure: 1U Form Factor, 10x2.5” NVMe SSD drives
- Scale-out architecture: Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
- Expansion enclosures: Minimum cluster size: 3 nodes, Maximum cluster size: 252 nodes
- Front End Networking (per node): Dual port 25 NIC supporting 10G or 25G connections (SFP+/SFP28), Dual Port 100G NIC supporting 40G or 100G connections
- Infrastructure Networking (per node): Dual port 100G NIC supporting 40G or 100G connections (QSFP+SFP28)
- Media Types: NVMe SSDs, 3.84 TB (TLC), 7.68 TB (TLC), 15.36 TB (QLC), 30.72 TB (QLC)
- Software: OneFS 9.2.1 or later. Upgrades are non-disruptive, PowerScale OneFS distributed file system
- Base unit:1U Form Factor
- Height: 42.8mm / 1.68in
- Width: 482mm / 18.97 in
- Depth: 822.88mm / 32.39 in. with bezel
- Weight: 22.5 kg / 49.6 lbs.
- Power: 1400 W, Dual redundant power supplies
- Max Power consumption: (200-240V per node), 25°C – 769 Watts, 35°C – 887 Watts
- Typical Thermal rating: 25°C – 2622 BTU/hr, 35°C – 3025 BTU/hr
