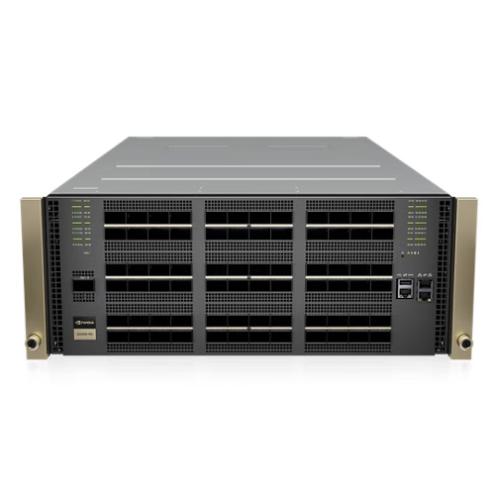

NVIDIA Spectrum SN5600 Switch
Connectors: 64 OSFP 800GbE
+ 1 SFP28 25GbE
Max. 800GbE ports: 64
Max. 400GbE ports: 128
Max. 200GbE ports: 256
Max. 100GbE ports: 256
Max. 50GbE ports: 256
Max. 40GbE ports: 128
Max. 25 ports: 256+1
Max. 10GbE ports: 256+1
Max. 1GbE ports: 1
Switching capacity (Tb/s): 51.2Tb/s
Wire-speed switching (Bpps): 33.3Bpps
Lanes per port x max. speed per lane: 8x 100G PAM4
CPU: Hexa-core x86
System memory: 32G
SSD memory: 160GB
Packet buffer: 160MB
100/1000Mb/s management ports: RJ45
Serial ports: RJ45
USB ports: USB Type 3
Hot-swap power supplies: 2 (1+1 redundant)
Hot-swappable fans: 4 (N+1 redundant)
Airflow: Reverse
Power supplies: Frequency: 50–60Hz
Input range: 208–264Vac
Operating conditions: 0–35ºC
Size (H x W x D) 3.39’’ (H) x 17.2’’ (W) x 28.3’’ (D)
86.2mm (H) x 438mm (W) x 720mm (D)
NVIDIA Spectrum SN2201 Switch
Form Factors: 48xRJ45 + 4x QSFP28
Max 100GbE ports: 4
Max 50GbE ports: 8
Max 40GbE ports: 4
Max 25GbE ports: 16
Max 10GbE ports: 16
Max 1GbE ports: 16
Max 1Gbase-T ports: 48
Max 100Mbase-T ports: 48
Max 10Mbase-T ports: 48
Throughput: 448Gb/s
Packet Rate: 667Mpps
Packet Buffer: 16 MB
CPU: Dual-core x86
System Memory: 8 GB
SSD Memory: 20 GB
10/100/1000 Ethernet management Port: Single RJ45
Serial Port: Single RJ45
Config and Backup: Single USB port
Power Supplies: 2 (1+1 redundant)
Fans: 4 (N+1 redundant)
Airflow Options: Forward/Reverse
Power Supplies: Frequency: 50-60Hz
Input range: 100-264 AC
Input current 4.5-2.9A
Typical Power (ATIS): 100W
Rack Mounting: 4-Post 19” rack, Tool-Less Railkit
Size (W x H x D): 1.72” x 16.84” x 17”
(43.9mm x 428mm x 432mm)
Weight: 7.41kg
