Brand: Dahua

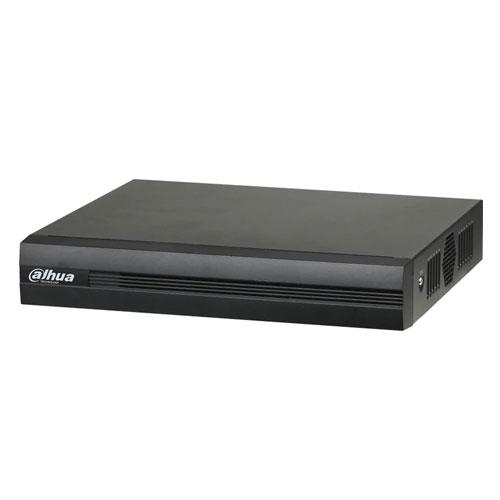

Product: DH-XVR4B16H-I 16 Channel Penta-brid 5M-N/1080P Compact 1U 1HDD WizSense Digital Video Recorder
Analog Camera Input: 16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
HDCVI Camera: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps
AHD Camera: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
TVI Camera: 5MP, 4MP, 1080p@25/30 fps, 720p@25/30 fps
CVBS Camera: PAL/NTSC
IP Camera Input: 16+8 channels, each channel up to 6MP
Audio In/Out: 1/1, RCA
Two-way Talk: Reuse audio in/out, RCA
Interface: 1 RJ-45 Port (100M)
Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access: 128 users
Smart Phone: iPhone, iPad, Android
Interoperability: ONVIF 16.12, CGI Conformant
Record Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Playback: 1/4/9/16
Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network
Playback Mode: Instant playback, general playback, event playback, tag playback, smart playback
Internal HDD: 1 SATA Port, up to 6TB capacity
eSATA: N/A
Dimension: Compact 1U, 260.0 mm × 231.4 mm × 47.6 mm (W × D × H) (10.24 × 9.11 × 1.87)
Net Weight: 0.57kg (1.25lb)
