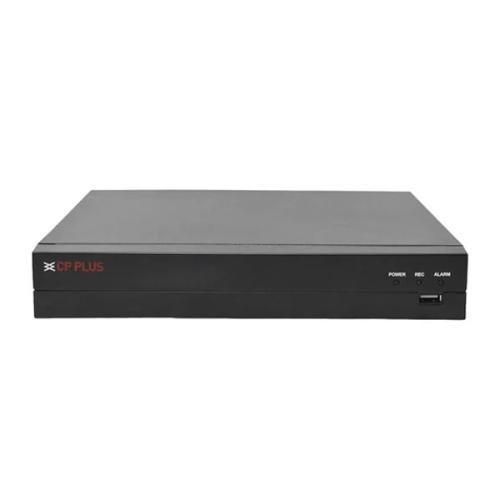

CP Plus CPUNR108F1 8Ch NVR
CP Plus CPUNR108F1 8Ch NVR Chennai, Hyderabad
- Brand: CP Plus
- Product: CP-UNR-108F1 8Ch Network Video Recorder
- Processor: Industrial-grade embedded processor
- Operating System: Embedded LINUX
- User Interface: Web/operating in local GUI
- Video Output: 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P
- Video Resolution: 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
- Video Recording: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
- Video Display Split: 1/4/8/9
- Bandwidth Incoming: 80 Mbps
- Channel: 8
- Motion Detection: Supports
- Video Loss: Supports
- Smart Phone: iPhone, iPad, Android Phone
- Hard Disk: 1 SATA 2.0, up to 8TB Each
- Recording Mode: Priority of record mode: Manual recording, alarm recording, motion detection recording, timed recording
- Backup Mode: USB Device
- Playback: Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off
- Ethernet: 1 RJ-45 port (10/100Mbps)
- Interface Ports: 2 USB Ports (1 Rear USB 2.0 , 1 Front USB 2.0 )
- Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (profile T/profile S/ profile G), RTSP, CGI, SDK
- Power Supply: DC12V, 1.5A
- Power Consumption: <10W (Without HDD)
- Working Temp: -10°C to 45°C (+34°F to +113°F)
- Dimension(W × L × H): 260 mm×225 mm×47.6 mm
- Weight: 0.81kg (without HDD)
Related Products
CP Plus CP UNC TB81ZL6C VMDS V2 8MP WDR IR Bullet Camera
CP Plus CP UNC VE81ZL4T VMDS 8MP WDR IR Dome Camera
CP Plus CP UNC TC81ZL6C VMDS V2 8MP WDR IR Network Bullet Camera
CP Plus CP UNC VB81ZL4C VMDS 8MP Vandal Dome Camera
CP Plus CP UNC TE81ZL6P VMDS 8MP AI WDR IR Bullet Camera
CP Plus CP UNC TG81ZL12 VMD 8MP AI IR Bullet Camera
CP Plus CP UNC VC81ZL4 VMDS 8MP WDR IR Dome Camera
CP Plus CP UNC TC81ZL6 VMDS 8MP FHD Bullet Camera

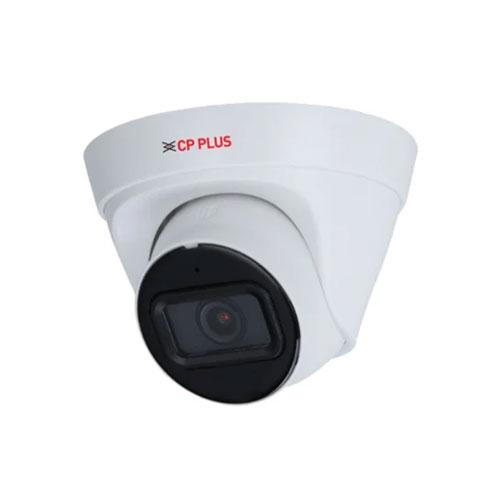

CP Plus CPUNC DA21L3CQ 2MP 30Mtr Network IR Dome Camera

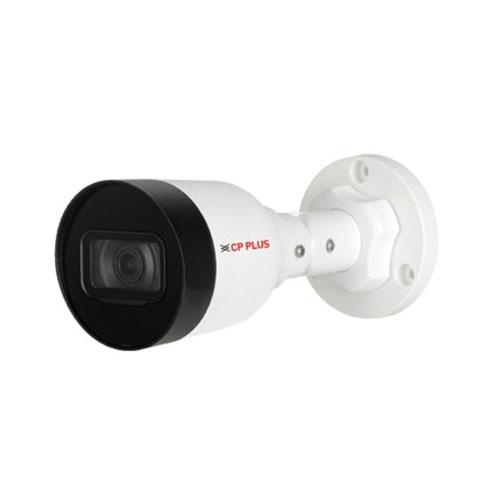

CP Plus CPUNC TA21L3CQ 2MP 30Mtr Network IR Bullet Camera
