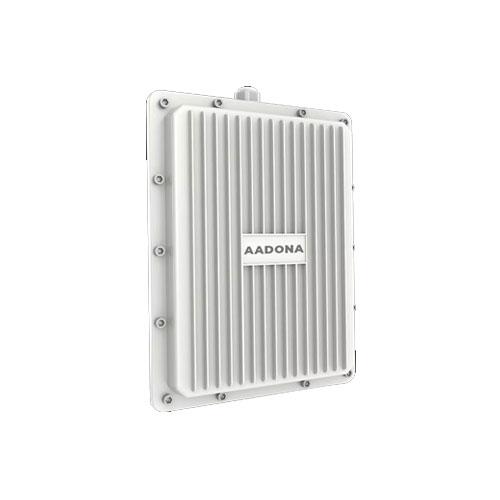

Aadona AXO 3600 Access Point
Aadona AXO 3600 Access Point Chennai, Hyderabad
- Brand: Aadona
- Product: Aadona AXO-3600 Access Point
- Model Name: AXO-3600
- Product Series: APOLLO
- Standard 802.11ac: Yes
- Standard Wi-Fi 6: Yes
- Standard MIMO technology: Yes
- Throughput: 3600 Mbps:
- Frequency Radio 2.4GHz: 802.11 b/g/n/ac/ax (max rate: 1182 Mbps)
- Frequency Radio 5GHz: 802.11 a/n/ac/ax (max rate: 2475 Mbps)
- MIMO 4x4: Yes
- MIMO: Yes
- Spatial streams: 4
- Concurrent Users: 512
- Housing Type: IP67
- Power Budget: 1000 mW, 20 dBm
- Physical Interface: 10/100 /1000Mbps RJ45 WAN Port: 1
- Physical Interface: 10/100 / 1000Mbps RJ45 LAN Port: 1
- Reset button: 1
- Antenna Connector: 6 Female N-type connectors for External antenna support
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA
- SSID: SSID for 2.4GHz: 4, SSID for 5GHz: 8
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF specifications Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM <br> DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Operating Temperature: -2050 °C
- Storage Temperature: -4070 °C
- Humidity: 10%~90% non-condensing
- Mounting Wall or Pole mount preferred
- Device Dimensions 198mm X 198mm X 28mm
- Weight: 4 Kgs
- Power input: 802.3at 48V PoE; <30W
- Warranty: 3 Year Warranty
Related Products
Aadona ASC 1200L V2 Wifi Access Point
Aadona ASC 1200L Wireless Access Point
Aadona ASC 1200 Wireless Access Point
Aadona AXC 1800L Wifi Access Point
Aadona AXC 1800 Wifi Access Point
Aadona AXC 3000L Wireless Access Point
Aadona AXC 3600 Wifi Access Point
Aadona AXC 7800 Wireless Access Point
Aadona AIC 1200 Wifi Access Point

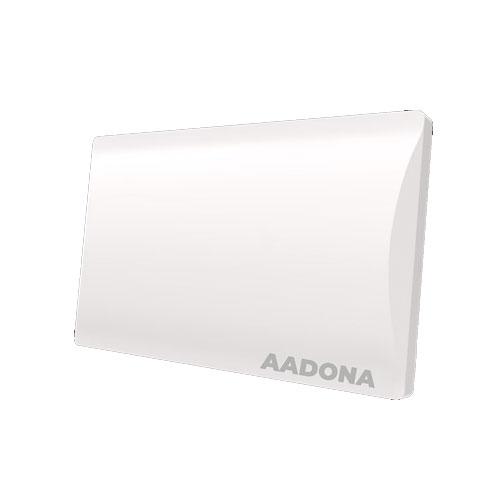

Aadona AIX 1700 Access Point
