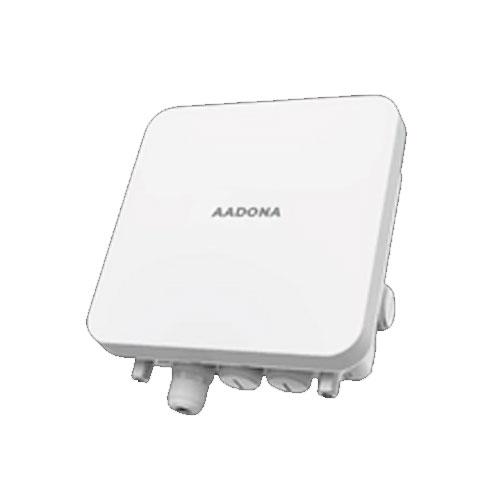

Aadona AOXE 1800 Access Point
Aadona AOXE 1800 Access Point Chennai, Hyderabad
- Brand: Aadona
- Product: Aadona AOXE-1800 Access Point
- Model Name: AOXE-1800
- Product Series: APOLLO
- Working Frequency: 2.4G: 802.11b/g/n; 5G: 802.11a/n/ac/ax
- Maximum Data Rate: 2.4G: 575Mbps; 5G: 1200Mbps
- Physical Port: 1 * 10/100/1000Base-T PoE port for uplink; 1 * 1000M SFP fiber port(Combo); 1 * 10/100/1000Base-T downlink port ; 1 build-in M.2 port for IoT and LTE expansion
- PoE: 802.3at
- Maximum power consumption: < 18W
- Antenna: External
- Working frequency band: 802.11b/g/n: 2.4 GHz to 2.483 GHz 802.11a/n/ac/ax: 5.150~5.350GHz 5.47~5.725GHz 5.725~5.850GHz
- Modulation technology: 11b:DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps; 11a/g: OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps; 11n: MIMO-OFDM: BPSK, QPSK,16QAM,64QAM; 11ac:MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM; 11ax: MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM,1024QAM
- Transmit power: Max 27 dBm
- Power adjustment granularity: 1 dBm
- Working/Storage temperature: -40°C to +65°C -45°C to +80°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection level: IP68
- Product positioning: Outdoor dual frequency
- Maximum Concurrent Clients: 254
- Virtual AP (BSSID): 32
- Number of spatial streams: 2.4GHz: 2; 5GHz: 2
- 802.11ax: 80 MHz bundling; 1200Mbps (PHY); Frame aggregation (A-MPDU); Maximum likelihood demodulation (MLD); Transmit beamforming (TxBF); Maximum ratio combining (MRC); Space-time block coding (STBC); Low-density parity-check code (LDPC)
- Encryption: 64/128 WEP, dynamic WEP, TKIP, and CCMP
- Protection against DoS attacks: Anti-DoS for wireless management packets
- Forwarding security: Frame filtering, white list, static blacklist, and dynamic blacklist
- User isolation: AP L2 forwarding suppression
- Isolation between Virtual APs (multiple SSIDs)
- Periodic SSID enabling and disabling: Yes
- Access control of free resources: Yes
- Secure admission control of wireless terminals: Yes
- Wireless SAVI: Yes
- ACL: Access control of various data packets such as MAC, IPv4, and IPv6 packets
- Secure access control of APs: Secure access control of APs, such as MAC authentication, password authentication, or digital certificate authentication between an AP and an AC
- IP address setting: Static IP or dynamic DHCP allocation
- IPv6 forwarding: Yes
- IPv6 portal: Yes
- Local forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP switching reference: Signal strength, bit error rate, RSSI, S/N, whether neighboring APs are normally operating, etc.
- Priority mapping: Ethernet port 802.1P identification and marking; Mapping from wireless priorities to wired priorities
- QoS policy mapping: Mapping of different SSIDs/VLANs to different QoS policies
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
